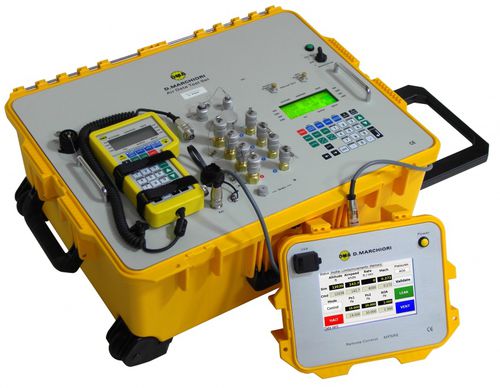

Pitot-static test instrument MPS39C

aeronauticaldigitalautomatic

• 3 or 4 independent channels for Altitude, Airspeed & Angle of Attack. • - Fully RVSM compliant with 12 months recalibration period • - Integral pressure and vacuum pumps with 5000 hour warranty • - Universal AC powered and internal 4 hour battery back-up • - Multiple Ps, Pt & AoA ports with automatic line switching option • - Rugged flightline unit with wheels and stowable tow handle MPS39C/40C Precision Multi-channel Air Data Test Sets upplying Air Data Test SETS TO THE world DMA traces its origins back to 1938, mainly as a test equipment manufacturer to support European aviation requirements. Today DMA supply precision Air Data Test Sets and other aviation ground support equipment to aircraft manufacturers, repair stations and operators throughout the world. Flight line tester for demanding applications The MPS39C/40C are digital technology portable Air Data Test Sets incorporating many standard features normally found on more expensive test instruments. The construction is both rugged and rainproof for demanding flight line use. Each unit is housed in a single case with wheels and a stowable handle. Automatic Control of 3 or 4 independent pressures In the MPS39C, three pressures are controllable separately and independently: Static for altitude and Qc/Pt for airspeed together with Angle of Attack (AoA) pressure to test those aircraft equipped with the Smart pitot probe. The MPS40C offers four independent channels. The angle of attack pressures can be displayed either in pressure units with a maximum of 0.0001 inHg resolution or directly in degrees of AoA with 0.1° resolution. When three pressures are not required, AoA ports can be used as Static ports.
