Phased array ultrasonic probe 2L8-8X9-DGS1-P-2.5-OM

membraneangle beam

Product overview

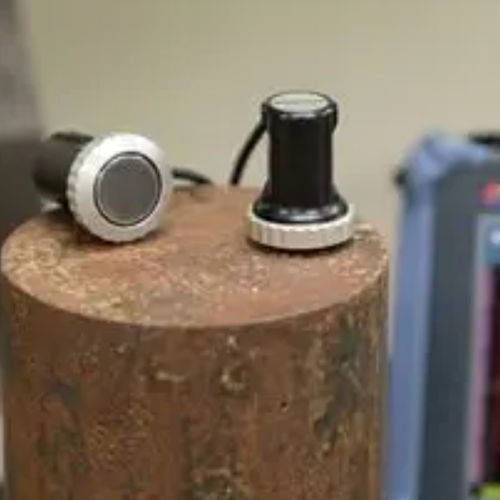

Our A24 probe series for manual contact inspection features an ergonomic Atlas series case, a replaceable 0.02-in (0.5 mm) urethane membrane and a large square active aperture to suit a range of field and shop inspections. Available in 2.0 MHz and 4.0 MHz versions with 8- and 16-element configurations and beam options for 58° shear and 0° longitudinal inspections.

Probe features

• A24 Atlas Series
• Replaceable wear face extends service life
• Versatile inspection sweep: longitudinal 0° with ±30° capability
• Available frequencies: 2.0 MHz and 4.0 MHz
• Standard Atlas series case compatible with phased array technology
• Ideal for inspecting:
  • Bridge pins and bolts
  • Forgings

Probe ordering information
Part number | Item Number | Frequency (MHz) | Number of Elements | Pitch (mm) | Active Aperture (mm) | Elevation (mm) | Cable Length (m) | Nominal Refracted Beam Angle in Steel
2L8-8X9-DGS1-P-2.5-OM | U8330598 | 2.0 | 8 | 1.0 | 8 | 9 | 2.5 | 58° Shear Wave
4L16-8X9-DGS1-P-2.5-OM | U8330597 | 4.0 | 16 | 0.5 | 8 | 9 | 2.5 | 58° Shear Wave
2L16-16X16-A24-P-2.5-OM | Q3300915 | 2.0 | 16 | 1.0 | 16 | 16 | 2.5 | 0° Longitudinal Wave
4L16-16X16-A24-P-2.5-OM | Q3300916 | 4.0 | 16 | 1.0 | 16 | 16 | 2.5 | 0° Longitudinal Wave

Accessories
Part number | Item Number | Description
WEAR-FACE-FOR-A24-CASE-STYLE-CLR-0.020 | U8770211 | Wear Face for A24 Case Type, 0.02-in. Thick, Package of 12 Clear Urethane Discs
MRN-24 | U8770389 | Protective Membrane Retaining Ring

Technical specifications

• Series: A24 Atlas Series
• Membrane thickness: 0.02 in (0.5 mm) urethane wear face
• Case: ergonomic Atlas series case with replaceable membrane
• Aperture: large square active aperture (8 mm or 16 mm depending on model)
• Frequencies: 2.0 MHz and 4.0 MHz
• Beam types: 58° Shear Wave and 0° Longitudinal Wave
• Element counts: 8 and 16 (model dependent)
• Pitches: 1.0 mm and 0.5 mm (model dependent)
• Elevations: 9 mm and 16 mm (model dependent)
• Cable length: 2.5 m (listed models)
• Typical applications: thickness and flaw inspection, bridge pins, bolts, forgings
