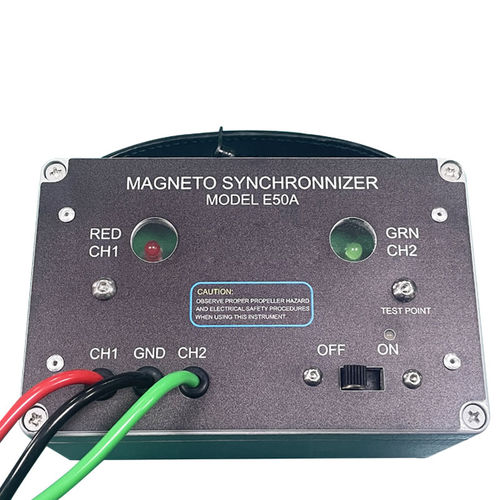

Electric test bench TL-E50A

calibrationvoltagemotor

Product Overview
The TL-E50A Magneto Synchronizer is a modern redesign of a long-standing aviation test instrument. It uses SMD microcircuitry and low-voltage inductance measurement to replace bulky vibrators and heavy transformers, delivering precise detection of contact break timing for accurate magneto testing.

Main Features

• Dual independent channels for left and right magnetos
• Compatible with impulse coupling, shower-of-sparks and boost systems
• Dual-tone indication to identify left or right synchronization
• Low-battery warning
• Quiet mode that suppresses continuous buzzing and alerts only on contact break

Technical Specification
Dimensions: 113 × 55 × 58 mm
Battery: 8 VDC, 1.8 A explosion-proof, high-temperature-resistant lithium battery pack
Measurement: Low-voltage inductance measurement using SMD microcircuitry

Application
Designed for functional testing and synchronization verification of Bendix and Slick magnetos in aircraft maintenance and overhaul operations.

Detailed Specifications

• Model: TL-E50A
• Technology: SMD microcircuitry with low-voltage inductance detection
• Channels: Dual independent channels (left and right)
• Compatibility: Impulse coupling, shower-of-sparks, boost systems
• Indication: Dual-tone left/right sync indication
• Battery: 8 VDC, 1.8 A explosion-proof, high-temperature-resistant lithium pack with low-battery warning
• Calibration: Built-in calibration test points for pre-use verification
• Operation modes: Quiet mode to suppress continuous buzzing
• Application: Functional testing of Bendix and Slick magnetos
