Converter test bench DH-1030-24-900-CS

avionic systemaeronauticalsingle-phase

Product overview

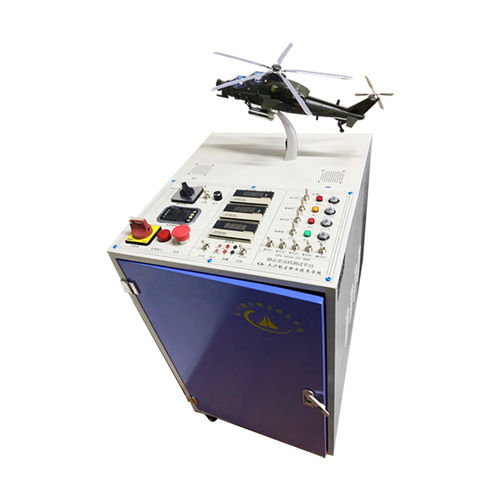

The DH-1030-24-900-CS static inverter secondary power teaching platform comprises a 24V battery, static converter, charger, load circuit, lighting and alarm tone modules. It converts DC to AC to supply aircraft external lighting and alarm voice playback for model demonstrations. Battery-powered, the unit provides single-phase 115V and 26V AC at 400Hz to control LED lighting modules and alarm modules on aircraft models, facilitating clear observation during training.

Main features

• Supplies single‑phase AC power for aviation/aircraft loads.
• Switch-controlled simulation of model aircraft LED lighting and alarm tone playback.
• Integrated battery supply with charger and load circuit for standalone demonstrations.

Technical specifications

• Operating voltage: 220±15% VAC
• Battery output: 24 VDC
• AC output: Single‑phase 115V, 26V, 400Hz
• Frequency display: range 400±20Hz; accuracy ±5Hz
• Dimensions: ≤ 600 × 500 × 900 mm
• Operating temperature: -10 °C to +45 °C
• Storage temperature: -10 °C to +45 °C
• Relative humidity: 10–90% RH

Applications

• Practical training and demonstrations of aircraft lighting and alarm systems.
• Technical education in avionics and aircraft electrical systems.
