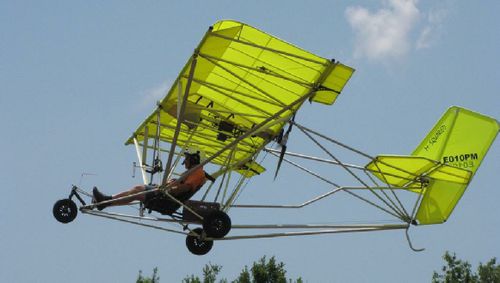

Single-seat ULM aircraft Breese-XL2-stroke engineinstructionalsingle-engine
Add to favorites
Compare this product
Characteristics
- Number of seats
- single-seat
- Motorization
- 2-stroke engine
- Applications
- instructional
- Other characteristics
- single-engine
- Length
19'00"
(5.79 m)- Height
7'00"
(2.13 m)- Wingspan
26'00"
(7.92 m)- Wing surface
151 ft²
- Max. take-off weight
525 lb
(238 kg)- Never exceed speed
63 mph
(101 km/h)- Take-off distance required
425'00"
(130 m)- Landing distance required
200'00"
(61 m)
Description
Hirth Power plant Engine,
Tach-temp-asi,
15" Main gear tires,
13" Nose wheel,
Steel main wheel axle stubs,
Side mounted controls,
Aluminum pilot roll cage and nose struts.
Aerodynamic lift and jury struts with adjustable fittings, High lift airfoil,
Center hard-shell gap cover,
5 Gal Fuel Cell
GENERAL SPECIFICATIONS
Model EngineHirth
No. Cylinders1
Displacement275 CC
Horsepower28 H.P.
Recommended T.B.O.300 Hrs
PropellerWood
Wing Loading5.95 lb/ft
Seats1
Useful Load273 lbs
Payload W/Full Fuel237 lbs
Structural rating+4 -2 G
PERFORMANCE
Takeoff Distance, 50 Ft
Rate of Climb 355 fpm
Max Level Speed, Sea Level 42 mph
Landing Distance,
Ground Roll 55 ft
Minimum Sink Rate 375 fpm
Glide Ratio 5.95 : 1
