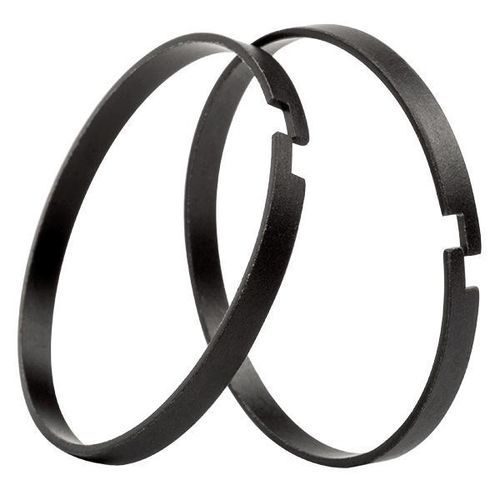

Aeronautical PEEK Meldin® 5000

injection

Overview
Components manufactured from the Meldin® 5000 series (PAEK and PEEK-based formulations) are engineered as injection-molded thermoplastic parts offering metal-replacement characteristics such as high mechanical strength, corrosion resistance and dimensional stability while enabling tight-tolerance, finished geometries without secondary machining.

Applications
Typical uses range from miniature bearings for handheld surgical instruments to large-diameter (>1.5 m) seal rings for offshore oil & gas. Grades are supplied as finished parts; selected grades are available as stock shapes for prototyping and lead-time reduction.

Grades and performance

• Meldin® 5301, 5302, 5320, 5330: superior chemical resistance, thermomechanical stability and dimensional control.
• Meldin® 5055: adds inherent lubricity for higher load-bearing and sliding applications.

Features and benefits

• Primary processing: injection molding into tight-tolerance finished components; select grades compatible with hot compression molding or extrusion.
• Metal-like surface finish achievable without expensive machining or secondary operations.
• Lightweight, corrosion-resistant alternative to metal and machined ceramics.
• High production capacity with precision tolerance control and 100% part inspection programs.

Standard Specifications
Materials: Polyetheretherketone (PEEK) / PAEK-based formulations
Service Conditions: Temperature range: -100°C to +260°C; Typical mechanical strength: ~50 MPa
Manufacturing Processes: Injection molding; compression molding; extrusion (grade-dependent)
Dimensional control: tolerance ±20 µm; Production capacity: >50M parts/year; Defects program: 0 ppm
Typical injection-molded dimensions: diameter Ø = 2–200 mm

Additional performance highlights

• Selective grades provide self-lubrication for reduced wear.
• Long-term durability under extreme temperatures and mechanical load.
• Excellent dimensional stability in aggressive chemical environments.
• Consistent quality ensured by 100% part inspection and tight process control.

Technical characteristics

• Material: PEEK (Polyetheretherketone) / PAEK-based blends
• Temperature range: -100°C to +260°C
• Mechanical strength: ≈50 MPa
• Manufacturing methods: injection molding, compression molding, extrusion (depending on grade)
• Tolerance control: ±20 µm
• Typical injection-molded diameter: 2–200 mm
• Production capacity: >50M parts/year
• Defects program: 0 ppm
