Rod PTFE Rulon® AR

sheettubeaeronautical

Overview

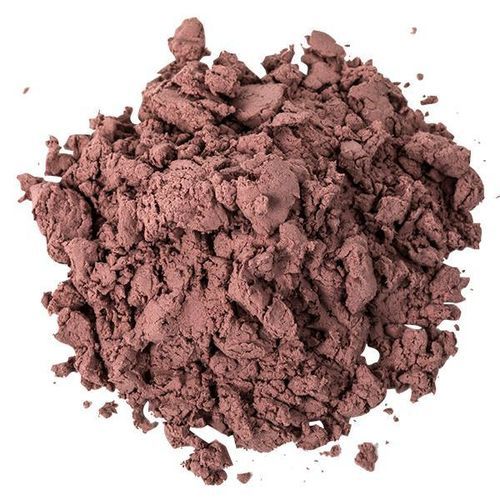

Rulon® AR is a light maroon, engineered ceramic-filled PTFE designed as the modern version of the original Rulon® A. It offers greater flexibility than Rulon® LR and is intended for seals, bonded coatings and slide surfaces where improved physical properties are required. The material is chemically inert and suitable for extended non-lubricated service.

Key properties

• Filled PTFE: engineered ceramic filler, light maroon color
• High compressive strength
• Low coefficient of friction
• Chemical resistance and electrical insulation
• Excellent abrasion and corrosion resistance in dry service
• Capable of operating at high PV values (see performance)

Performance data & features

• Friction coefficient: 0.15–0.25
• Max PV (dry/lub): 0.35 MPa·m/s (table entry)
• Capable of operating at PV values up to approximately 10,000 (intermittent higher PV possible, as noted)
• Superior dry friction behavior and reduction of stick/slip
• Reduced hardware abrasion
• Minimal moisture absorption and stable dimensions in aggressive chemicals

Service conditions & mechanical
Temperature range: -150°C to +200°C
Mechanical strength (compressive): 7 MPa

Manufacturing & available forms
Manufacturing process: compression molding
Available forms: rods and tubes, skived sheets, tapes, extruded shapes, automatically molded bearings and components, stamped or machined seals, machined parts/shapes.

Dimensions (as listed)
Rods and Tubes: (ϕ) 1.2m x (L) 3m
Sheets: (L,W) 610 mm x (ϕ) 80 mm
Tapes: (W) 1 m x (T) = [0.08;6] mm

Applications & environments

• Typical applications: pumps, mixers, compressors, appliances, insulators, linear slides, pipe supports, wear bands
• Environments: steam, wet, dry, vacuum; suitable for static and dynamic sealing, cryogenic and high-temperature uses depending on design

Technical specifications

• Material: light maroon fluoropolymer, engineered ceramic-filled PTFE
• Temperature range: -150°C to +200°C
• Mechanical strength (compressive): 7 MPa
• Manufacturing process: compression molding
• Friction coefficient: 0.15–0.25
• Max PV (dry/lub): 0.35 MPa·m/s; capable at PV values up to approx. 10,000 (intermittent higher PV possible)
• Forms & dimensions: rods/tubes (ϕ 1.2 m x L 3 m), sheets (610 × ϕ 80 mm), tapes (W 1 m × T 0.08–6 mm); also skived sheets, stamped/machined seals, extruded shapes, molded bearings/components
• Chemical & wear performance: chemical inertness, excellent abrasion and corrosion resistance without lubrication, electrical insulation, low moisture absorption
