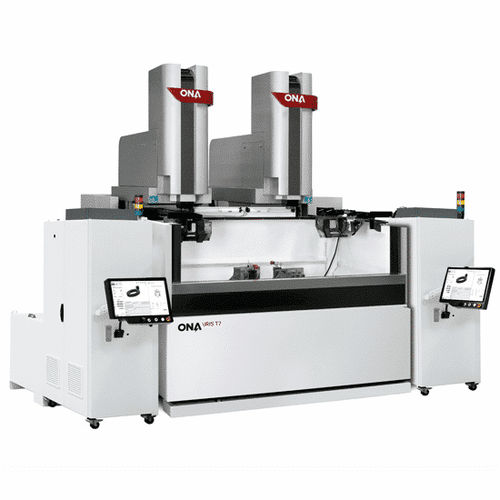

Die sinking EDM IRIS T7

A new level of connectivity and digitization that allows you to simulate any project and reduce the possibility of error thanks to its powerful graphic engine, capable of converting your needs into precise, profitable and, above all, successful results. Max. distance between table and head - 1.200 mm - 47.24 in Worktank internal dimensions - Length - 2.300 mm - 90.55 in Width - 1.500 mm - 59.05 in Height - 1.000 mm - 39.37 in Work table dimension - 1.700 x 1.000 mm - 66.92 x 39.37 in Allowable weight on the table - 15.000 kg - 33070 Ibs Type of work tank - Abatible - Drop door Maximum electrode weight - 300 kg - 440 Ibs Intensity of the generator - 100|200|400 A - 100|200|400 A Benefits of ONA IRIS Technology Reduction of erosion time of up to 50%. Greater efficiency with up to 200% in productivity. Highly rigid mechanical structure constructed of stabilized fine grained cast iron blended with graphite that allows work pieces up to 25.000 kg. A reinforced C axis affording stability in erosion with electrodes that have high moments of inertia (aprox. 12,000 kg/ cm2). Unique technological innovation. Generator 30% more powerful than the rest of the market capable of reaching up to 800 A in intensity. ONA IRIS machines include a very powerful control with up to 8 simmultaeously interpolating axes and volumetric compensation in the entire work area.
