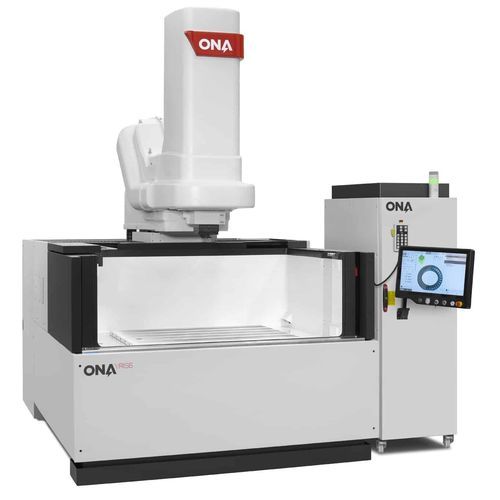

Die sinking EDM IRIS 6+

Overview
The ONA IRIS 6+ is a die-sinking EDM machine platform with advanced connectivity and digitisation. It integrates a 100% digital generator and a graphic engine for simulation and project conversion, enabling precise process control and reduced rework.

Key highlights

• 100% digital generator, fully configurable and programmable.
• High connectivity and digital simulation via a graphic engine to minimise errors.
• Generator intensity up to 400 A for high-power erosion operations.
• Optimised erosion cycle that reduces electrode wear and adapts to discharge conditions.

Technical table (selected specifications)

• X-axis travel (individual): 1.000 mm — 39.37 in
• Y-axis travel: 800 mm — 31.5 in
• Travel of the electrode holder: 500 mm — 19.7 in
• Max. distance between table and head: 800 mm — 31.49 in
• Worktank internal dimensions (L x W x H): 1.700 x 1.150 x 600 mm — 66.93 x 45.28 x 23.62 in
• Work table dimension: 1.200 x 800 mm — 47.24 x 31.49 in
• Allowable weight on the table: 4.000 kg — 8,820 Ibs
• Work tank type: Drop door
• Maximum electrode weight: 300 kg — 440 Ibs
• Minimum surface roughness: 0.08–0.1 µm Ra
• Generator intensity options: 100 / 200 / 400 A

Benefits of ONA IRIS Technology

• Fully digital, programmable generator with up to 30 adjustable spark parameters.
• Electrode savings: wear reduced up to 500% through generator optimisation.
• Up to 30 configurable parameters to fine-tune the eroding spark for different materials and conditions.
• Generator ~30% more powerful than typical market units, reaching up to 400 A.
• Control system with up to 8 interpolating axes and volumetric compensation across the work area.

Technical specifications

• Model name: ONA IRIS 6+
• Machine type: Die-sinking EDM (sinking EDM)
• X-axis travel (individual): 1.000 mm
• Y-axis travel: 800 mm
• Electrode holder travel: 500 mm
• Max distance table-head: 800 mm
• Worktank internal dimensions (L x W x H): 1.700 x 1.150 x 600 mm
• Work table dimension: 1.200 x 800 mm
• Allowable weight on table: 4.000 kg
• Work tank type: Drop door
• Maximum electrode weight: 300 kg
• Surface finish (minimum roughness): 0.08–0.1 µm Ra
• Generator intensity options: 100 / 200 / 400 A
• Digital generator: configurable, programmable, up to 30 adjustable spark parameters
• Control: up to 8 interpolating axes with volumetric compensation
