Die sinking EDM IRIS 10

Product overview

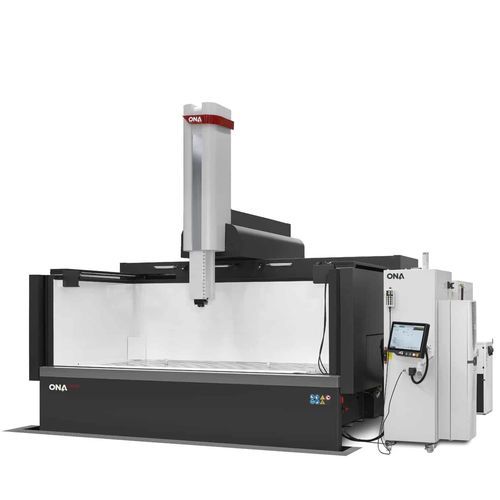

The ONA IRIS 10 is a die-sinking (sinker) EDM machine engineered for large workpieces and high-intensity erosion processes. Its integrated connectivity and advanced graphic simulation tools enable process validation and error reduction before machining.

Benefits of ONA IRIS Technology

• Highly rigid mechanical structure in stabilized fine-grained cast iron with graphite, supporting workpieces up to 25,000 kg.
• Reinforced C axis for stable erosion with high-moment electrodes (approx. 12,000 kg/cm²).
• Direct position feedback via linear scales with 0.1 µm resolution for precise positioning.
• High-power generator (up to 30% more powerful than standard market units), capable of delivering up to 400 A for intensive erosion.
• Advanced CNC control: up to 8 interpolating axes simultaneously and volumetric compensation across the full working volume.

Specifications (table)
X-axis travel (individual): 3000 mm — 118.11 in
Y-axis travel: 1000 / 1500 mm — 39.37 / 59.05 in
Z-axis travel: 800 / 1000 mm — 31.50 / 39.37 in
Max. distance between table and head: 1200 mm — 47.24 in
Worktank internal dimensions (L×W×H): 4000 mm × 2000 mm × 1250 mm — 157.48 in × 78.74 in × 49.21 in
Work table dimension: 3200 × 1600 mm — 125.98 × 62.99 in
Allowable weight on the table: 25,000 kg — 55,116 lbs
Type of work tank: Drop door
Maximum electrode weight: 300 kg — 440 lbs
Generator intensity: 100 | 200 | 400 A

Applications and use
Designed for large die-sinking EDM tasks and heavy components up to 25 tonnes. Suited to high-connectivity, simulation-driven workflows and sectors requiring homogeneous surface finishes and large-part machining: mold making, aeronautics, automotive and heavy engineering.

Technical characteristics / specifications

• Model: ONA IRIS 10
• X-axis travel (individual): 3000 mm
• Y-axis travel: 1000 / 1500 mm
• Z-axis travel: 800 / 1000 mm
• Maximum distance between table and head: 1200 mm
• Worktank internal dimensions: L 4000 mm; W 2000 mm; H 1250 mm
• Work table dimension: 3200 × 1600 mm
• Allowable weight on the table: 25,000 kg (≈ 55,116 lbs)
• Type of work tank: Drop door
• Maximum electrode weight: 300 kg (≈ 440 lbs)
• Generator intensity options: 100 A, 200 A, 400 A
• Position feedback: Linear scales with 0.1 µm resolution
• Control: Up to 8 simultaneously interpolating axes with volumetric compensation
