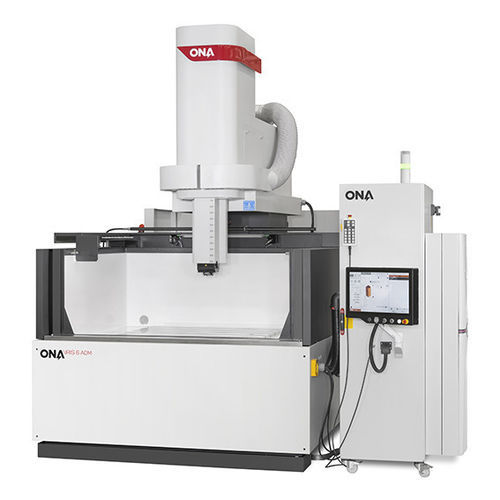

Die sinking EDM IRIS 6 A0M

Overview
An advanced, fully connected die-sinking EDM solution featuring a powerful graphics engine for accurate project simulation and reduced risk of error. The system enables simulation-driven process planning to convert design intent into precise and repeatable machining strategies. Connect. Simulate. Win.

Specifications (table)
X-axis travel (individual): 1,000 mm — 39.37 in
Y-axis travel: 750 mm — 29.53 in
Travel of the electrode holder: 650 mm — 25.59 in
Max. distance between table and head: 1,000 mm — 39.37 in
Worktank internal dimensions — Length: 1,800 mm — 70.87 in
Worktank internal dimensions — Width: 1,300 mm — 51.18 in
Worktank internal dimensions — Height: 700 mm — 27.56 in
Work table dimension: 1,200 x 1,000 mm — 47.24 x 39.37 in
Allowable weight on the table: 5,000 kg — 11,023 lb
Type of work tank: Fixed
Maximum electrode weight: 300 kg — 661 lb
Minimum roughness: 0.08–0.1 µm Ra
Intensity of the generator: 100|200|400 A

Benefits

• Fully digital, programmable generator configurable to process requirements.
• Electrode consumption and wear significantly reduced (up to 500%) through optimized discharge control.
• Full digital adjustment of the eroding spark with up to 30 programmable parameters for process fine-tuning.
• Innovative generator technology delivering approximately 30% higher power than standard units, capable of up to 400 A.
• Advanced control with up to 8 simultaneously interpolating axes and volumetric compensation across the work area.

Technical specifications

• X-axis travel (individual): 1,000 mm
• Y-axis travel: 750 mm
• Travel of the electrode holder: 650 mm
• Max. distance between table and head: 1,000 mm
• Worktank internal dimensions — Length: 1,800 mm
• Worktank internal dimensions — Width: 1,300 mm
• Worktank internal dimensions — Height: 700 mm
• Work table dimension: 1,200 x 1,000 mm
• Allowable weight on the table: 5,000 kg
• Type of work tank: Fixed
• Maximum electrode weight: 300 kg
• Minimum roughness: 0.08–0.1 µm Ra
• Intensity of the generator: 100|200|400 A
