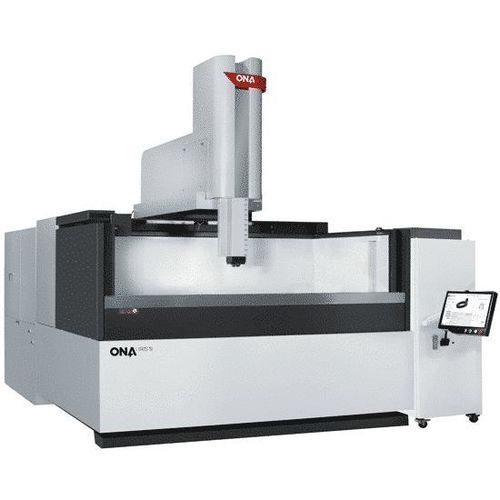

Die sinking EDM IRIS 9

Product overview
A new level of connectivity and digitization that allows you to simulate any project and reduce the possibility of error thanks to its powerful graphic engine, capable of converting your needs into precise, profitable and, above all, successful results. Connect. Simulate. Win.

Benefits of ONA IRIS Technology

• Highly rigid mechanical structure constructed of stabilized fine grained cast iron blended with graphite that allows work pieces up to 25,000 kg.
• Reinforced C axis affording stability in erosion with electrodes that have high moments of inertia (approx. 12,000 kg/cm2).
• Direct position measurement by means of linear scales with 0.1 µm resolution.
• Unique technological innovation: generator 30% more powerful than the rest of the market capable of reaching up to 400 A intensity.
• Powerful control with up to 8 simultaneously interpolating axes and volumetric compensation across the entire work area.

Technical specifications (table)
X-axis travel (individual): 2,000 mm / 78.74 in
Y-axis travel: 1,200 mm / 47.24 in
Z-axis travel: 800 mm / 31.49 in
Max. distance between table and head: 1,200 mm / 47.24 in
Worktank internal dimensions - Length: 2,800 mm / 110.24 in
Worktank internal dimensions - Width: 1,700 mm / 66.92 in
Worktank internal dimensions - Height: 1,000 mm / 39.37 in
Work table dimension: 2,200 x 1,200 mm / 86.61 x 39.37 in
Allowable weight on the table: 20,000 kg / 44,093 lbs
Type of work tank: Drop door
Maximum electrode weight: 300 kg / 440 lbs
Intensity of the generator: 100 | 200 | 400 A

Additional product information
Designed for maximum performance with very large parts (the machine family supports workpieces of significant mass). Includes advanced connectivity/digitization features enabling simulation of projects and reduced risk of error. High mechanical rigidity and powerful generator make the machine suitable for heavy-duty EDM applications where stability and high current intensities are required.

Caractéristiques / spécifications techniques

• Model: ONA IRIS 9
• X-axis travel (individual): 2,000 mm
• Y-axis travel: 1,200 mm
• Z-axis travel: 800 mm
• Maximum distance table-head: 1,200 mm
• Worktank internal dimensions (L x W x H): 2,800 x 1,700 x 1,000 mm
• Work table dimension: 2,200 x 1,200 mm
• Allowable weight on table: 20,000 kg
• Permitted workpiece mass capability (machine family statement): up to 25,000 kg
• Type of work tank: Drop door
• Maximum electrode weight: 300 kg
• Generator intensity options: 100 / 200 / 400 A (generator up to 30% more powerful vs market)
• Position measurement: Linear scales, 0.1 µm resolution
• Control: Up to 8 simultaneously interpolating axes and volumetric compensation across the work area
