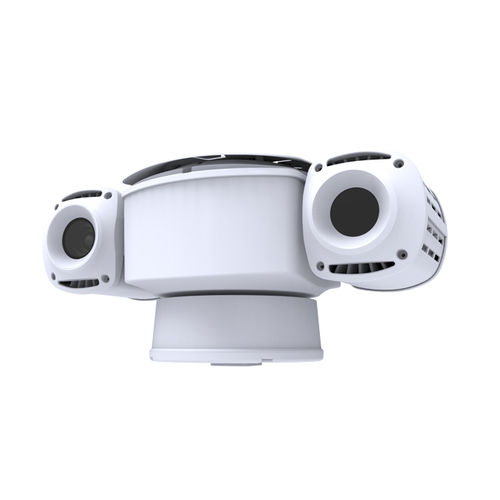

Video surveillance camera TPV-IBD Series

thermal imagingfor airportPTZ

TPV-IBD Series IP Thermal Imaging PTZ Camera - 360°Pan/Tilt Endless / FTP Upgrade Support - 1,000 Hours Saltproof (Option) / Dual codec(H.264 & MJPEG) Thermal Imaging Camera - NETD＜40mk (@f/1.0) / AGC / 5 Color Mode / Black Hot·White Hot Day & Night Color Camera - x30 Optical Zoom / WDR SENSOR　　 Thermal Sensor　Uncooled Micro Bolometer Pixel Pitch　25μm Wave Length　8 ~ 14μm NETD　<40mk(@f/1.0) 　　　 VIDEO　　 Output Frequency　NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) Array Format　384 x 288 Resolution　720 x 480 (NTSC) / 720 x 576 (PAL) 　　　 LENS　　 LENS　19mm (FOV 19.5˚ x 14.7˚), 35mm (FOV 10.7˚ x 8˚), 60mm (FOV 6.2˚ x 4.7˚) FUNCTION　　 Calibration　Auto/Manual/Interval(sec)Mode Selectable Image Translation　FLIP(Vertical, Horizontal), Inverse, Freeze Image Enhance　AGC, MIDE, Sharpness, Smooth Image Utility 　Auto Focus, Digital Zoom(8x), DIS(Digital Image Stabilization) Pseudo Color　Gray / Rainbow /Iron / Glowbow / 2 Color OSD Menu　Not Available 　　　 CAMERA MODULE　　 Image Sensor　1/2.8 Type “Exmor” CMOS Sensor Total Image Pixels　1920 x 1080 Lens　30x F=1.6~4.7, f=4.3~129mm (Digital : 12x / Total : 360x with optical zoom) Min. Illumination　ICR OFF : 0.05 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.19 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) ICR ON : 0.05 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.002 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) Luminance S/N ratio　More than 50dB
