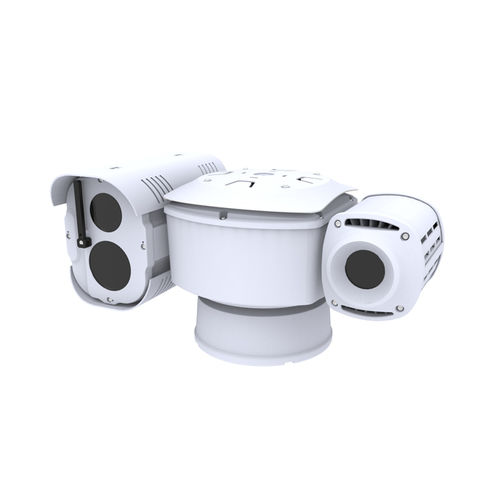

Thermal imaging camera TPV-IHDR Series
for airportPTZ

thermal imaging camera
thermal imaging camera
Add to favorites
Compare this product


Characteristics

Type
thermal imaging
Applications
for airport
Other characteristics
PTZ

Description

TPV-IHDR Series HD IP Dual Outdoor IR Thermal Imaging PTZ Camera - IP67 / 360°Pan/Tilt Endless / FTP Upgrade Support - 1,000 Hours Saltproof (Option) / Dual codec(H.264 & MJPEG) Thermal Imaging Camera - NETD<50mk (@f/1.0) / AGC / 5 Color Mode / Black Hot·White Hot Day & Night Full HD Camera - x30 Optical Zoom / WDR / Wiper type SENSOR   Thermal Sensor Uncooled Micro Bolometer Pixel Pitch 17μm Wave Length 8 ~ 14μm NETD <50mk(@f/1.0)     VIDEO   Output Frequency NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) Array Format 640 x 480 Resolution 1280 x 720     LENS   LENS 19mm (FOV 32° x 24.3°), 35mm (FOV 17.5° x 13.2°), 60mm (FOV 10.3° x 7.7°) 100mm (FOV 6.2° x 4.7°), 150mm (FOV 16.9° x 12.6°~ 4.2° x 3.1°) FUNCTION   Calibration AUTO / MANUAL / INTERVAL(sec) Mode Selectable Inverse Mode ON / OFF Freeze Mode ON / OFF AGC Mode OFF / AGC / WAGC AGC Limit Level x1 / x1.5 / x2 / x2.5 / x3 / x5 / x8 / x15 / x30 Selectable ROI Full / Center / Under / Upper / Left / Right MIDE Level Selectable [OFF, 1..15] (when, Sharpness OFF) Sharpness Level Selectable [OFF, 1..10] (when, MIDE OFF) Image Mode Gray, Rainbow, Iron, Glowbow, 2Color     CAMERA MODULE   Image Sensor 1/2.8 Type “Exmor” CMOS Sensor Total Image Pixels 1920 x 1080 Lens 30x F=1.6~4.7, f=4.3~129mm (Digital : 12x / Total : 360x with optical zoom) Min. Illumination ICR OFF : 0.05 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On) 0.19 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off) ICR ON : 0.05 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.002 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On) Luminance S/N ratio More than 50dB
