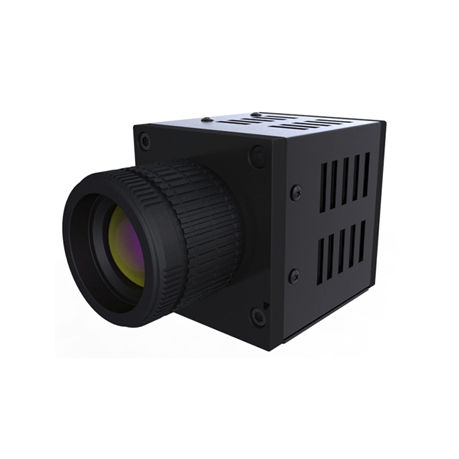

Thermal imaging camera TSM-1M Series

for airport

TSM-1M Thermal Imaging Camera Module - Resolutin : 640 x 480 - Lowest NETD :＜50mk - Digital Image Stabilizer include - 8x Digital Zoom - Noise Reduction - Auto Focus Support with Zoom Lens SENSOR　　 Thermal Sensor　Uncooled Micro Bolometer Pixel Pitch　17μm Wave Length　8 ~ 14μm NETD　<50mk(@f/1.0) 　　　 VIDEO　　 Output Frequency　NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) Video Output　Analog : CVBS(Option HD-SDI), Digital : BT.1120 Array Format　640 x 480 Output Resolution　720x480(NTSC) / 720x576(PAL) 　　　 LENS　　 LENS　19mm (FOV 32° x 24.3°), 35mm (FOV 17.5° x 13.2°), 60mm (FOV 10.3° x 7.7°) 100mm (FOV 6.2° x 4.7°), 150mm (FOV 16.9° x 12.6°~ 4.2° x 3.1°) 　　　 FUNCTION　　 Calibration　Auto/Manual/Interval(sec)Mode Selectable Image Translation　FLIP(Vertical, Horizontal), Inverse, Freeze Image Enhance　AGC, MIDE, Sharpness, Smooth Image Utility 　Auto Focus, Digital Zoom(8x), DIS(Digital Image Stabilization) Pseudo Color　Gray / Rainbow /Iron / Glowbow / 2 Color OSD　Full Functions Menu Available
