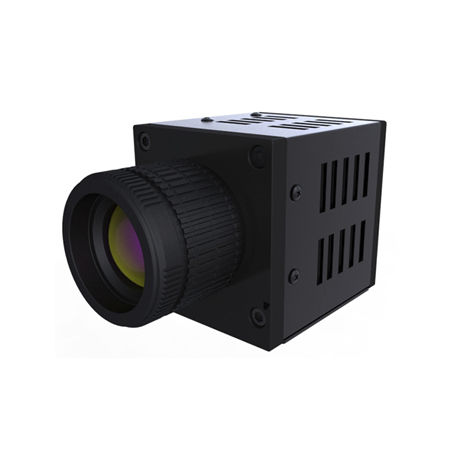

Thermal imaging camera TSM-72 Series
for airport

thermal imaging camera
thermal imaging camera
thermal imaging camera
Add to favorites
Compare this product


thermal imaging
for airport


Thermal Imaging Camera Module - Resolutin : 384 x 288 - Lowest NETD : <40mk - Digital Image Stabilizer include - 8x Digital Zoom - Noise Reduction - Auto Focus Support with Zoom Lens SENSOR   Thermal Sensor Uncooled Micro Bolometer Pixel Pitch 25μm Wave Length 8 ~ 14μm NETD <40mK (@f/1.0)     VIDEO   Output Frequency NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps) Video Output Analog : CVBS(Option HD-SDI), Digital : BT.1120 Array Format 384 x 288 Output Resolution 720x480(NTSC) / 720x576(PAL) LENS   LENS 11mm, 19mm     FUNCTION   Calibration Auto/Manual/Interval(sec)Mode Selectable Image Translation FLIP(Vertical, Horizontal), Inverse, Freeze Image Enhance AGC, MIDE, Sharpness, Smooth Image Utility  Auto Focus, Digital Zoom(8x), DIS(Digital Image Stabilization) Pseudo Color Gray / Rainbow /Iron / Glowbow / 2 Color OSD Full Functions Menu Available ELECTRICAL   Power Consumption DC12V 260mA, 3.12W (Normal Status), DC12V 3.75W (Max) Power Supply DC12V 1A     ETC   Ext-Interface UART(9600 / 19200 / 38400bps), RS-485 (Option) Operating Temperature -15℃ ~ 55℃
