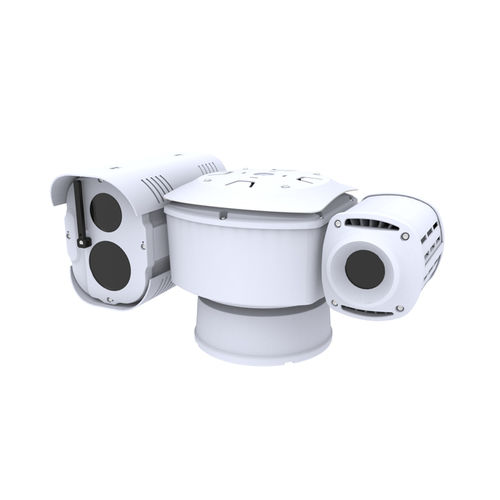

TPV-IBDR Series
IP Dual Outdoor IR Thermal Imaging PTZ Camera
- IP67 / 360°Pan/Tilt Endless / FTP Upgrade Support
- 1,000 Hours Saltproof (Option) / Dual codec(H.264 & MJPEG)
Thermal Imaging Camera
- NETD<40mk (@f/1.0) / AGC / 5 Color Mode / Black Hot·White Hot
Day & Night Full HD Camera
- x30 Optical Zoom / WDR / Wiper type
SENSOR
Thermal Sensor Uncooled Micro Bolometer
Pixel Pitch 25μm
Wave Length 8 ~ 14μm
NETD <40mk(@f/1.0)
VIDEO
Output Frequency NTSC : 59.94Hz (30fps), PAL : 50Hz (25fps)
Array Format 384 x 288
Resolution 720 x 480 (NTSC) / 720 x 576 (PAL)
LENS
LENS 19mm (FOV 19.5˚ x 14.7˚), 35mm (FOV 10.7˚ x 8˚), 60mm (FOV 6.2˚ x 4.7˚)
FUNCTION
Calibration Auto/Manual/Interval(sec)Mode Selectable
Image Translation FLIP(Vertical, Horizontal), Inverse, Freeze
Image Enhance AGC, MIDE, Sharpness, Smooth
Image Utility Auto Focus, Digital Zoom(8x), DIS(Digital Image Stabilization)
Pseudo Color Gray / Rainbow /Iron / Glowbow / 2 Color
OSD Menu Not Available
CAMERA MODULE
Image Sensor 1/2.8 Type “Exmor” CMOS Sensor
Total Image Pixels 1920 x 1080
Lens 30x F=1.6~4.7, f=4.3~129mm (Digital : 12x / Total : 360x with optical zoom)
Min. Illumination ICR OFF : 0.05 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode On)
0.19 lx (1/4 sec, 1/3 sec, 50%, High Sensitivity mode Off)
ICR ON : 0.05 lx (1/30 sec, 50%, High Sensitivity mode Off)
0.002 lx (1/4 sec, 1/3 sec, 30%, High Sensitivity mode On)
Luminance S/N ratio More than 50dB
