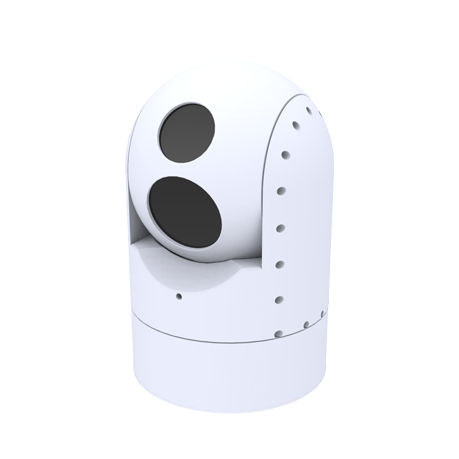

2-axis gimbal TBX-10
for cameraswith zoomwith thermal camera

2-axis gimbal
2-axis gimbal
Add to favorites
Compare this product


Number of axes
for cameras, with zoom, with thermal camera, infrared


TBX-10 Stabilized Gimbal Thermal Camera Thermal Imaging Camera - Uncooled Micro Bolometer 17m - Aray Format : 640 x 480 - Lowest NETD : ≤50mk - Digital Zoom x4 30X Zoom Full HD Camera - 1920X1080 Full HD, 32X optical motorized zoom Mechanism - Gyro Motion Stabilization System - Digital Image stabilization - BIT (Built In Test) - Video Auto Tracker (Option) - Auto Trader / Detector (Option) - GPS & Digital Compass (Option) - Laser Range Finder (Option) THERMAL CAMERA   Spectral Range Uncooled TiOx Microbolometer Resolution 640 x 480 Pixel Pitch 17 μm NETD ≤50mK @F1.0 Focal Length 19mm(32˚ x 24.3˚), 35mm(17.5˚ x 13.2˚) DIS ON / OFF D-ZOOM ON / OFF (x4, 15steps) Color Variation(Palette) 5 colors (Gray / Rainbow / Iron / Glowbow / 2 Color) Image Processing AGC, NUC, Mirror, Flip, Inverse, Freeze, MIDE, Sharpness     COLOR CAMERA Full HD CMOS Zoom Camera Sensor Type 1/2.8 inch CMOS Image Resolution 1920(H) x 1080P(V), 1280 X 1024, 1280 X 960, 1280 X 720P Focal length 4.44 ~ 142.6mm, 32x Optical Zoom, 16x Digital Zoom FOV H 62.8°(Wide) ~ 2.23°(Tele) / V 36.80°(Wide) ~ 1.26°(Tele)     LASER RANGER FINDER Option Laser wavelength 1.5 μm, eyesafe Detection Range 2km for 2.3x2.3m Nato Target Measurement Rate 1,10 Selectable Accuracy 1 ~ 1.5m CONTROLLER Option Controller Type Panel Mount Controller Display 10.2" Touch LED Interface RADAR, GPS, Ethernet, RS232/RS422 Features Built-In-Test, Stabilization Select, Real-Time Monitoring, Network Control


No catalogs are available for this product.
