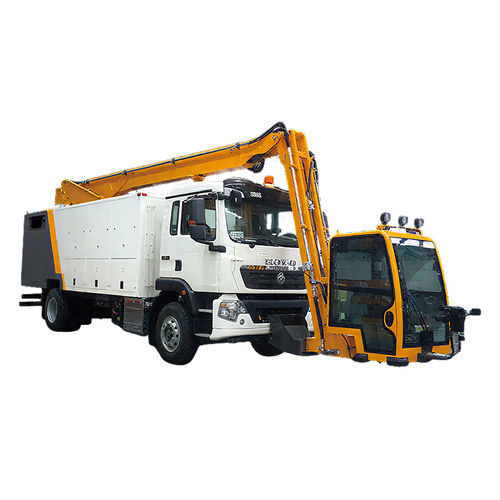

Aircraft de-icing vehicle RSCB80E

sprayer

Overview
RSCB80E is a specialized airport ground vehicle designed for partial or full de-icing and anti-icing of aircraft. It is also suitable for inspection, maintenance and exterior cleaning operations on aircraft.

Key features

• Safe and reliable: Cab and working basket equipped with emergency stop switches; in case of engine failure or other emergencies the boom and hanging basket can be quickly and safely lowered. Optional ultrasonic sensors provide audible and visual alarms when the basket approaches the aircraft or obstacles to prevent collision.
• Stable chassis: Optimized chassis suspension with stabilizing device, automatic transmission and hydraulic automatic leveling of the working basket for precise positioning.
• Modular design: Advanced layout for easy access and simplified maintenance of hydraulic, electrical and heating systems.
• Controlled heating: Automatic heater control with protection against over-temperature, over-pressure, dry-burning and overheating.

Specification

• Product model: RSCB80E
• Maximum operating height (mm): 14200
• Maximum operating range (mm): 11700
• Rated working load of hanging basket (kg): 160 (closed basket) / 204 (open basket)
• Volume of anti-icing liquid tank (L): 1200
• Volume of de-icing liquid tank (L): 7000
• Heating time (min): 3-7
• Heating method: Instant heating
• Maximum temperature of de-icing liquid at spray gun outlet (ºC): 85

Product specifics

• Model: RSCB80E
• Brand: Cheerong

Technical specifications

• Product model: RSCB80E
• Maximum operating height (mm): 14200
• Maximum operating range (mm): 11700
• Rated working load of hanging basket (kg): 160 (closed basket) / 204 (open basket)
• Volume of anti-icing liquid tank (L): 1200
• Volume of de-icing liquid tank (L): 7000
• Heating time (min): 3-7
• Heating method: Instant heating
• Maximum temperature of de-icing liquid at spray gun outlet (ºC): 85
