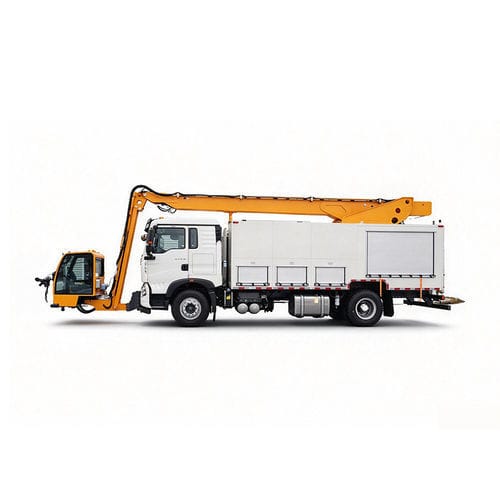

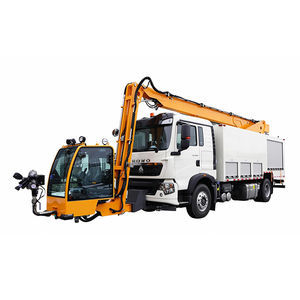

Airport de-icing vehicle CB-80E-3

sprayerA320B737

Product Description
The CB-80E-3 aircraft deicing vehicle is a next-generation, high-efficiency unit developed for airport ground operations. It complies with industry standards, has passed performance and safety tests, and is listed in the CAAC special equipment directory with formal airport applicability approval.
The vehicle integrates an intelligent control system and high-power instant heating to rapidly bring deicing/anti-icing fluids to the preset working temperature. A high-pressure spraying system delivers controlled pressure and uniform coverage to wings, fuselage and tail surfaces for effective ice and frost removal.
This equipment is suitable for routine and emergency deicing/anti-icing at commercial airports, airline operation bases and MRO facilities. It can also support exterior washing, inspections and maintenance tasks.

Specification
Maximum working height: 15000 mm
Boom slewing angle: ±185°
Boom slewing speed: 0.5 r/min
Maximum driving speed: 60 km/h
Minimum stable speed: 3.2 km/h
Stable working speed: ≤5 km/h
Water tank capacity: 4000 L
Deicing fluid tank capacity: 2500 L
Anti-icing fluid tank: 2000 L
Anti-icing nozzle pressure: 0.4 MPa
Anti-icing nozzle flow: 90 L/min
Anti-icing nozzle range: 25 m
Deicing nozzle pressure: 1.4 MPa
Deicing nozzle max flow: 260 L/min
Deicing nozzle max range: 30 m
Max fluid temperature at nozzle: 85°C
Heater power: 1100 kW
Heating time: 2.5 min
Engine power: 258 kW
Auxiliary engine model: B3.9CS4 130C
Auxiliary engine rated power: 96 kW
Aux. engine rated speed: 2200 r/min
Transmission: Allison 3000P
Max torque / speed: 480 Nm@1350 rpm
Chassis wheelbase: 5000 mm
Basket rated load: 160 kg
Basket lifting speed: 0.5 m/s
Applicable aircraft: All except A380
Emission standard: National VI

FAQ

• Q1: What is an aircraft de-icing vehicle? A: A specialized airport ground support vehicle with a hydraulic telescopic boom and operator cabin that sprays deicing/anti-icing fluid to remove ice, snow and frost and prevent re-freezing prior to flight.
• Q2: What fluids can this de-icing truck use? A: Supports Type I, Type II and Type IV deicing/anti-icing fluids; the system heats fluids to the required operating temperature for efficient ice removal.
• Q3: What aircraft types is this de-icing vehicle compatible with? A: Serves narrow-body types such as B737 and A320 and most wide-body aircraft; the long-reach boom provides access to wings, fuselage and tail surfaces.
• Q4: What are the key safety features? A: Hydraulic boom overload protection, emergency stop, anti-collision sensors, operator interlocks, fluid leak monitoring and an insulated operator cabin with clear visibility.
• Q5: What is the working temperature range? A: Designed for cold-climate operations; the heating system maintains stable output temperature for normal deicing tasks at low ambient temperatures.

Why Choose Us

• Proven manufacturing and production processes
• Advanced production machinery and automated lines
• Strict quality control and component traceability
• Dedicated R&D team for airport ground support solutions
• Experienced export and after‑sales service network
• Turnkey support: consulting, supply, commissioning and training

Technical specifications

• Model: CB-80E-3
• Maximum working height: 15000 mm
• Boom slewing angle: ±185°
• Boom slewing speed: 0.5 r/min
• Maximum driving speed: 60 km/h
• Minimum stable speed: 3.2 km/h
• Stable working speed: ≤5 km/h
• Water tank capacity: 4000 L
• Deicing fluid tank capacity: 2500 L
• Anti-icing fluid tank: 2000 L
• Anti-icing nozzle pressure: 0.4 MPa
• Anti-icing nozzle flow: 90 L/min
• Anti-icing nozzle range: 25 m
• Deicing nozzle pressure: 1.4 MPa
• Deicing nozzle max flow: 260 L/min
• Deicing nozzle max range: 30 m
• Max fluid temp at nozzle: 85°C
• Heater power: 1100 kW
• Heating time: 2.5 min
• Engine power: 258 kW
• Auxiliary engine model: B3.9CS4 130C
• Auxiliary engine rated power: 96 kW
• Aux. engine rated speed: 2200 r/min
• Transmission: Allison 3000P
• Max torque / speed: 480 Nm@1350 rpm
• Chassis wheelbase: 5000 mm
• Basket rated load: 160 kg
• Basket lifting speed: 0.5 m/s
• Applicable aircraft: All except A380
• Emission standard: National VI
