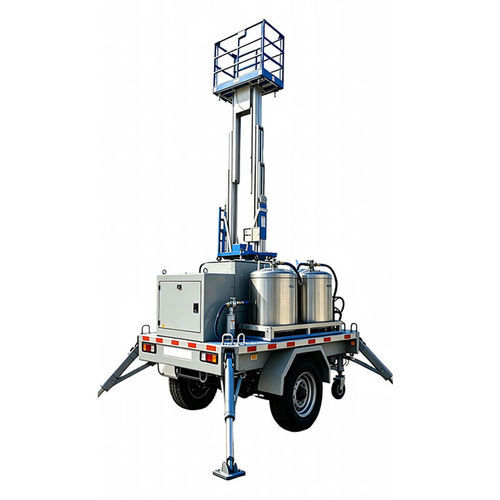

Towed washing truck CM-Q5030QXZ

for aircraftwith two tanks

Product overview
The CHEERSMETAL CM-Q5030QXZ mobile aircraft windshield washing vehicle provides a mobile elevating platform and integrated washing system for ground handling teams to clean aircraft windshields and cockpit glazing. Key operational parameters include an 8000 mm platform lift, adjustable washing pressure and dual wash/rinse tanks.

Applicable aircraft models

• A320
• A330
• A340
• A350
• B737
• B747
• B757
• B767
• B777
• etc.

Standards and requirements

• AHM910 – Basic Requirements for Aircraft Stand Support Equipment
• AHM913 – Basic Safety Requirements for Aircraft Stand Support Equipment
• AHM915 – Standard Controls
• AHM916 – Basic Requirements for Towing Surfaces of Inclined Operation Equipment
• Q/WXQ 021-2026 – Enterprise Standard for WXQ Series Aircraft Washing Vehicles

Technical specifications

• Model: CM-Q5030QXZ
• Brand: CHEERSMETAL
• Vehicle curb weight: 2700 kg
• Maximum towing speed: 5 km/h
• Minimum ground clearance: 110 mm
• Platform lifting height: 8000 mm
• Permitted platform load: 200 kg
• Motor power: 1.1 kW
• Washing tank capacity: 35 L
• Rinsing tank capacity: 35 L
• Washing pressure: 20–100 bar (adjustable)
• Continuous operating time: 4 h
• Overall dimensions: 2200 × 1800 × 2000 mm
