Aircraft de-icing vehicle CB-80E-2

sprayerB737A320

Product overview

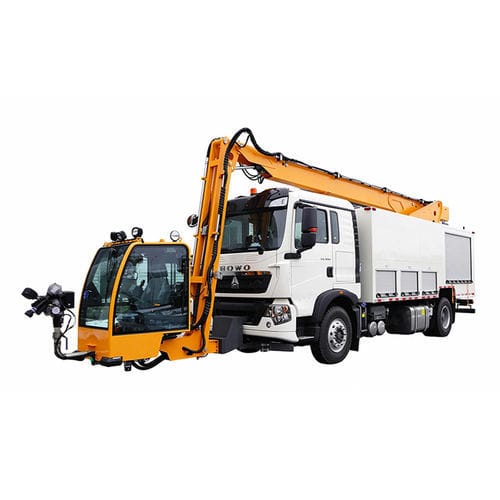

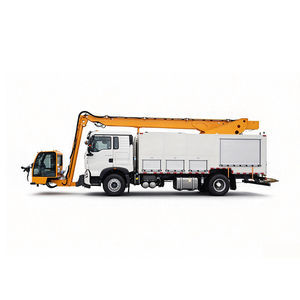

The CHEERSMETAL CB-80E-2 aircraft de-icing vehicle is a next-generation de-icing/anti-icing ground support unit designed for civil airports and MROs. It integrates an intelligent control system and high-efficiency instantaneous heating to rapidly bring dedicated fluids to operating temperature, then delivers them via a high-pressure spray system with controlled pressure and coverage. The enclosed operator basket and long-reach telescopic boom enable safe access to wings, fuselage and tail for targeted or full-aircraft de-icing and anti-icing pretreatment.

Main features

• Intelligent control with precise temperature and pressure regulation for consistent fluid delivery.
• Instantaneous heating system: 1100 kW heater reaching max fluid outlet temperature up to 85°C.
• High-capacity tanks: 7500 L de-icing fluid and 1510 L anti-icing fluid for extended operations.
• Long-reach hydraulic boom with ±185° slewing and max reach allowing up to 30 m spray range.
• Enclosed operator basket rated 160 kg with 0.5 m/s lifting speed for protected working environment.
• Allison 3000P automatic transmission and a 258 kW chassis engine meeting China VI emissions.

Technical specifications

• Model: CB-80E-2
• Max. working height — 15000 mm
• Boom slewing angle — ±185°
• Boom slewing speed — 0.5 r/min
• Max. driving speed — 60 km/h
• Min. stable driving speed — 3.2 km/h
• Stable working speed — ≤5 km/h
• De-icing fluid tank capacity — 7500 L
• Anti-icing fluid tank capacity — 1510 L
• Heater power — 1100 kW
• Heating time — 2.5 min
• Max. fluid temp. at gun outlet — 85°C
• De-icing gun working pressure — 1.4 MPa
• De-icing gun max. flow — 260 L/min
• De-icing gun max. range — 30 m
• Anti-icing gun working pressure — 0.4 MPa
• Anti-icing gun max. flow — 90 L/min
• Anti-icing gun max. range — 25 m
• Basket rated working load — 160 kg (enclosed)
• Basket lifting speed — 0.5 m/s
• Engine power — 258 kW
• Engine emission standard — China VI
• Transmission — Allison 3000P automatic
• Chassis wheelbase — 5000 mm
• Auxiliary engine model — B3.9CS4 130C
• Aux. engine rated power — 96 kW
• Aux. engine rated speed — 2200 r/min
• Max. torque / speed — 480 Nm @ 1350 rpm
• Applicable aircraft types — All except Airbus A380

Safety & compliance

• Complies with relevant industry standards and passed tests by the National Construction Machinery Quality Supervision and Inspection Center.
• Included in the CAAC airport special equipment announcement catalog with official airport applicability approval.
• Safety systems: hydraulic boom overload protection, emergency stop, anti-collision sensors, operator interlocks and fluid leakage monitoring.
• Insulated enclosed cabin for operator protection in cold environments.

FAQ

• Q1: What is an aircraft de-icing vehicle? A: A ground support vehicle equipped with a hydraulic telescopic boom and operator basket to spray de-icing/anti-icing fluids and remove ice, snow and frost from aircraft surfaces.
• Q2: What fluids can this vehicle use? A: Supports Type I, Type II and Type IV de-icing/anti-icing fluids; system heats fluids to required temperature for efficient removal.
• Q3: Which aircraft types is it compatible with? A: Serves narrow-body aircraft (e.g., B737, A320) and most wide-body types; excluding Airbus A380 due to platform limitations.
• Q4: What are the key safety features? A: Boom overload protection, emergency stop, anti-collision sensors, operator interlocks and fluid leakage monitoring.
• Q5: What is the operating temperature range? A: Designed for cold-climate airport operations; the heating system maintains stable fluid output temperature for effective de-icing.

Why choose CHEERSMETAL

• Dedicated R&D team for airport ground support equipment
• Controlled production processes and component traceability
• Global export experience and after-sales support
• One-stop solution including installation, commissioning and training

Technical characteristics

• Model: CB-80E-2
• Brand: CHEERSMETAL
• Max. working height: 15000 mm
• Enclosed basket: rated load 160 kg
• De-icing tank: 7500 L / Anti-icing tank: 1510 L
