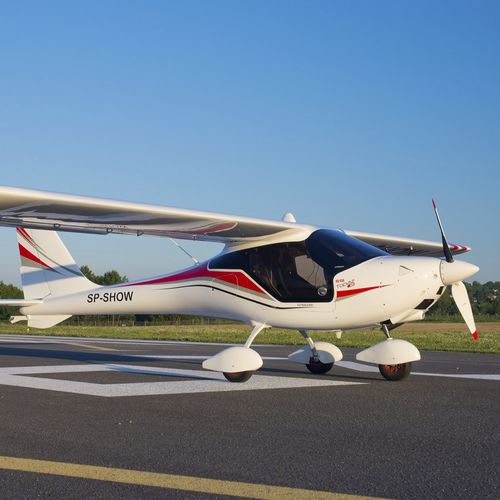

Home Page » EN » Aircrafts » KR-030 Topaz » Descryption of KR-030 Topaz Descryption of KR-030 Topaz KR-030 Topaz is a shoulder-wing monoplane with cantilever wing. All the important elements of the plane are made of glass and carbon composite and have shell-like structure, locally reinforced with 3-D fabric - PARABEAM. The front side of the cockpit contains two sits placed across the cockpit. Width of the cockpit is 1,2m. The fuselage structure is made of two symmetrical pieces, which are stuck together and toughen additionally. Sits have got composite structure. Canopy of the plane - windscreen is made of UV-resistance Plexiglas whereas doors are formed as carbon composite frames filled with 3mm Plexiglas. Fin is the integral part of the fuselage. Three axis landing gear with the front wheel coupled with rudder. The main gear legs are made of glass composite. Each wheel has got independent hydraulic brake system. Optionally, the wheels may be covered with laminated fairings. One-piece, rectangular, cantilever wing, mounted on the fuselage with four bolts. Section NN-1817 was used due to very high resistance of its edge of attack to impurities. Section NN-1817 has got very good aerodynamical characteristic - was checked in the PW-5 "SMYK" glider.
