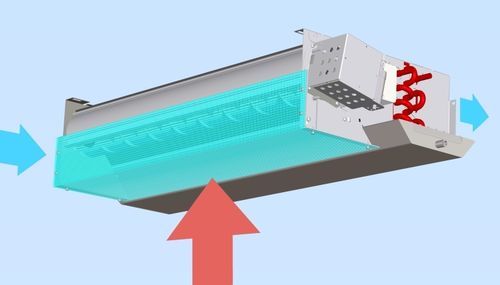

Fan coil unit VKH

Overview
The ceiling fan coil unit VKH is designed for hotel applications and for integration into ceiling bulkheads. It enables flexible air distribution layouts while minimising installation height and acoustic impact.

• Low-noise operation
• Space-saving: low installation height
• Maintenance-friendly construction
• Installation height: 218 mm
• High cooling capacity for rapid temperature control

Functions

• Cooling and heating
• Dehumidifying operation

Technical data (LpA = 35 dB(A))

• Flow rate: 160–800 m³/h
• Max. cooling capacity: up to 4000 W (with 6 °C cold water inlet, 27 °C suction air)
• Cooling capacity at 35 dB(A): up to 3600 W (specified conditions)
• Max. heating capacity: up to 7300 W (with 70 °C warm water inlet, 20 °C suction air)
• Electrical capacity (EC technology): max. 14 W (up to 60% speed level)

Dimensions

• Length x width (mm): 616...1246 x approx. 445
• Installation height: 218 mm

Design / Options

• Available sizes: 630 | 800 | 1000 | 1250
• 2-pipe system: cooling only or heating only
• 4-pipe system: simultaneous cooling and heating
• Fresh air supply: optional on request
• Decentralized control technology (Connected Intelligence): optional on request

Air diffusion
Air diffusion layout available for the VKH flow form.

Technical specifications

• Product type: Ceiling fan coil unit (VKH)
• Application: Hotel; suitable also for hospital and office use
• Functions: Cooling, Heating, Dehumidifying
• Flow rate range: 160–800 m³/h
• Max. cooling capacity: up to 4000 W (6 °C cold water inlet, 27 °C suction air)
• Cooling capacity at 35 dB(A): up to 3600 W (specified conditions)
• Max. heating capacity: up to 7300 W (70 °C warm water inlet, 20 °C suction air)
• Electrical capacity (EC): max. 14 W (up to 60% speed level)
• Dimensions (L x W): 616...1246 x approx. 445 mm
• Installation height: 218 mm
• Sizes: 630, 800, 1000, 1250
• Pipe systems: 2-pipe or 4-pipe
• Optional: Fresh air supply, Decentralized control technology (Connected Intelligence)
