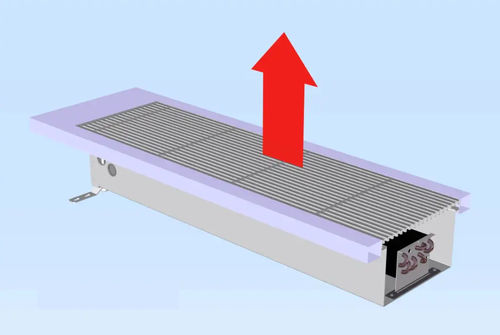

Air heater SKB

circulation

Overview
Static heating convector designed to cover the full heating load or provide residual heating by means of free convection. Suitable for integration into raised-floor ventilation concepts and uniform room appearances.

Design

• With LTG SystemDesign: ensures a uniform appearance across rooms and simplifies combination with other raised-floor ventilation or air‑conditioning systems (e.g. VKB).

Control / Connected Intelligence
LTG Connected Intelligence: enables demand-based ventilation even without a building management system. Uses decentralized control intelligence that is efficient, scalable and bus-compatible.

Functions

• Heating
• Optional fresh air supply

Acoustic / Performance
Technical data at LpA = 35 dB(A): maximum heating output up to 400 W per running meter.

Dimensions (Length x Width x Height in mm)
1020-2450 x 332 x 191

Air diffusion
Flow shape: VKB-type air diffusion (visual reference on product page).

Innovations
SystemDesign concept for uniform room appearance and easy combination with different raised-floor ventilation and air-conditioning systems.

Technical specifications

• Model family: SKB
• Function: Heating; optional fresh air supply
• Acoustic level: LpA = 35 dB(A)
• Max. heating output: up to 400 W per running meter
• Dimensions (L x W x H): 1020-2450 x 332 x 191 mm
• Air diffusion: VKB-type flow shape
• Design feature: LTG SystemDesign for uniform appearance
• Control: Compatible with decentralized LTG Connected Intelligence (demand-based ventilation, scalable, bus-compatible)
