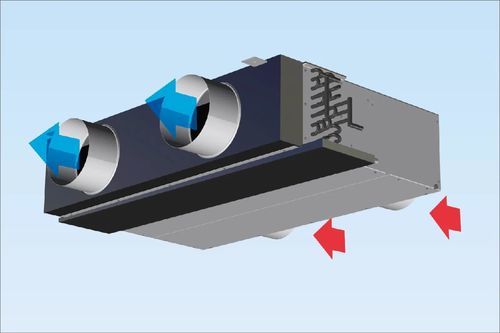

Fan coil unit VKE

Overview
Powerful yet quiet: a fan coil unit solution for ceiling installation in a wide range of rooms, from offices to hotel rooms. Particularly suitable for connection to various air diffuser systems such as LTG slot diffusers or swirl diffusers.

Key features

• Exceptional flexibility in room design and appliance installation; small space requirement
• Maintenance-friendly design
• Low operating costs thanks to energy-optimized control and economical components (including ebmpapst GREEN TECH technology)
• High cooling capacity while operating quietly
• Option of rapid cooling

Control
Demand-based ventilation possible with decentralized control intelligence; efficient, scalable and bus-compatible control options are available.

Functions

• Dehumidification mode
• Fresh air supply (optional)
• Cooling
• Heating

Technical Data for LpA = 35 dB(A)
Max. cooling output: 3800 W | At 6 °C cold water supply temperature / 27 °C intake temperature
Max. heating output: up to 4000 W | At 6 °C cold water supply temperature / 27 °C intake temperature
Electrical power: 20 W | At 70 °C hot water supply temperature / 20 °C intake temperature
Cooling output up to 3000 W | At LpA = 35 dB(A) with 6 dB room attenuation

Dimensions
Length x Width x Height (mm): 1100 x 752 x 250

Air diffusion
Compatible with multiple air diffusion patterns (e.g. slot and swirl diffuser arrangements).

Technical specifications

• Brand: LTG
• Model / series: VKE
• Functions: Dehumidification, Fresh air supply (optional), Cooling, Heating
• Max. cooling output: 3800 W (6 °C cold water / 27 °C intake)
• Cooling (quiet mode): up to 3000 W at LpA = 35 dB(A) with 6 dB room attenuation
• Max. heating output: up to 4000 W (6 °C cold water / 27 °C intake)
• Electrical power consumption: 20 W (at 70 °C hot water / 20 °C intake)
• Dimensions (L x W x H): 1100 x 752 x 250 mm
• Energy-saving components: includes ebmpapst GREEN TECH technology and energy-optimized control options
• Installation type: ceiling installation
