Fan coil unit QVC

Overview
For cooling and heating with high comfort requirements. As a pure recirculation unit, it is particularly suitable for applications in which the fresh air supply to the room is ensured by an independent ventilation system or by window ventilation.

Key features

• Comfortable room climate thanks to displacement ventilation
• Pollutants are transported away in a targeted manner by the thermal energy
• Free design of the parapet cladding by the architect or client
• Cooling energy savings thanks to air flow from bottom to top
• Diffuser can be adapted to different parapet heights and widths

Control
LTG Connected Intelligence: Demand-based ventilation even without a building management system. Decentralized control intelligence, efficient, scalable and bus-compatible.

Technical data
Functions

• Cooling
• Heating
• Fresh air supply (optional)

Technical Data for LpA = 35 dB(A)
Max. Cooling Output: 1200 W (At 16 °C cold water supply temperature / 27 °C intake temperature)
Max. Heating Output: 3400 W (At 70 °C hot water flow temperature / 20 °C intake temperature)
Electrical power approx.: 10 W
Cooling output up to: 950 W
Fresh air volume flow up to: 140 m³/h

Dimensions (Length x Width x Height in mm)
800-1600 x 197 x 600

Air diffusion

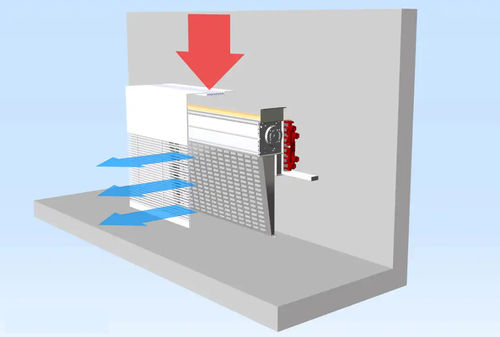

Air diffusion adapted for QVC parapet installation (illustrated flow form available).

Technical specifications

• Model series: QVC series (variants referenced: QVC-2, QVC-4 in documentation)
• Designed for parapet (sill) installation
• Functions: Cooling, Heating, optional Fresh air supply
• Max. cooling output: 1200 W (reference conditions)
• Cooling output (alternate): up to 950 W
• Max. heating output: 3400 W (reference conditions)
• Electrical power consumption (control/operational): approx. 10 W
• Fresh air volume flow: up to 140 m³/h
• Acoustic rating reference: LpA = 35 dB(A)
• Dimensions (L x W x H): 800-1600 x 197 x 600 mm
