Fan coil unit VFC-N

Overview

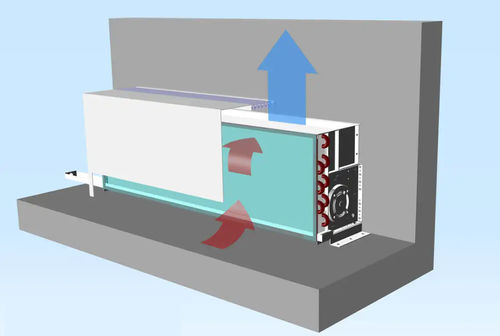

Versatile fan coil unit providing optimized airflow patterns for hotels and office buildings with high acoustic requirements. Designed for low parapets (installation height 280 mm). Offers high cooling capacity with low power consumption and supports mixed-source ventilation for improved occupant comfort. Optional dehumidification mode and primary air supply. Maintenance-friendly layout and possible fresh air connection. LTG Connected Intelligence enables demand-based decentralized control without a higher-level BMS.

Key features

• Suitable for low parapets (installation height 280 mm)
• Energy-efficient design: high cooling capacity with low electrical consumption
• Maximum comfort via mixed-source ventilation
• Optional dehumidification mode
• Maintenance-friendly construction
• Fresh air connection possible
• LTG Connected Intelligence: decentralized, demand-based control without higher-level building management system

Functions

• Dehumidification mode (optional)
• Primary air supply (optional)
• Cooling
• Heating

Technical data (LpA = 35 dB(A))

• Max. cooling output: 1200 W
• Cooling output (alternate): up to 1100 W
• Max. heating output: 5100 W
• Electrical power consumption: 21 W
• Recirculated air volume flow: up to 380 m³/h

Dimensions

• Length x Width x Height (mm): 647-1397 x 201 x 291

Design / Options

• Low installation height design
• Compatibility with low flow temperatures
• Decentralized control with LTG Connected Intelligence (operation possible without higher-level BMS)

Downloads available

• LTG recommendations fan coil units & Corona (PDF)
• Technical brochure fan coil unit VFC (PDF)
• Specification fan coil unit VFC-2 (DOCX)
• Specification fan coil unit VFC-4 (DOCX)

Characteristics / Spécifications techniques

• Model: VFC-N
• Manufacturer / Brand: LTG
• Applications: Hotels, office buildings, rooms with high acoustic requirements
• Installation height (minimum parapet): 280 mm
• Functions: Cooling, Heating, (optional) Dehumidification mode, (optional) Primary air supply
• Sound level reference: LpA = 35 dB(A)
• Max. cooling output: 1200 W
• Cooling output (alternate): up to 1100 W
• Max. heating output: 5100 W
• Electrical power consumption: 21 W
• Recirculated air volume flow: up to 380 m³/h
• Dimensions (L x W x H): 647-1397 x 201 x 291 mm
• Options: Low installation height design, Low flow temperature compatibility, Decentralized control (LTG Connected Intelligence)
