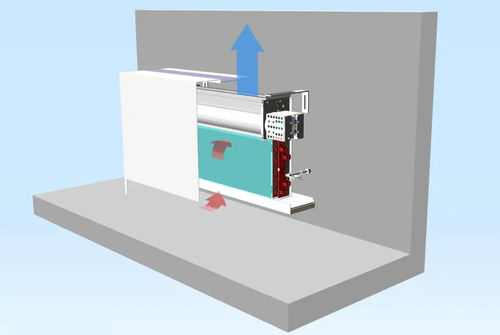

Fan coil unit VFC

Overview
The VFC fan coil unit is designed for use in hotels and office buildings with high acoustic requirements. It delivers an efficient airflow pattern for mixed-source ventilation and can be integrated into different room air distribution concepts.

Key features

• Energy-efficient: high cooling capacity with low electrical consumption
• Maximum comfort through mixed-source ventilation
• Dehumidification mode available (optional)
• Maintenance-friendly design
• Fresh air / primary air connection possible (optional)
• Suitable for narrow and low parapets

Functions

• Cooling
• Heating
• Dehumidification mode (optional)
• Primary / fresh air supply (optional)

Technical performance (LpA = 35 dB(A))

• Max. cooling output: 2700 W (6 °C cold water inlet / 27 °C intake / 200 kg/h water mass flow)
• Max. heating output: 6400 W (70 °C hot water flow / 20 °C intake / 200 kg/h water mass flow)
• Electrical power (approx.): 8 W
• Typical cooling output: up to 2300 W
• Recirculated air volume flow: up to 830 m³/h

Dimensions (Length x Width x Height in mm)
645–1371 x 165 x 452/479

Design / Options

• Designed for low installation height
• Compatible with low flow temperatures
• Decentralized control via LTG Connected Intelligence (demand-based ventilation without central BMS)

Available documentation (examples)

• Technical brochure fan coil unit VFC (PDF)
• Installation instructions VFC (PDF)
• LTG recommendations for fan coil units & Corona (PDF)

Technical specifications

• Model name: VFC
• Intended applications: hotels, office buildings (high acoustic requirements)
• Primary functions: cooling, heating; optional dehumidification; optional primary/fresh air supply
• Max. cooling (LpA = 35 dB(A)): 2700 W
• Max. heating (LpA = 35 dB(A)): 6400 W
• Electrical power consumption (approx.): 8 W
• Typical cooling output: up to 2300 W
• Recirculated air flow: up to 830 m³/h
• Dimensions (L x W x H mm): 645–1371 x 165 x 452/479
• Design options: low installation height, compatibility with low flow temperatures, decentralized control capability
