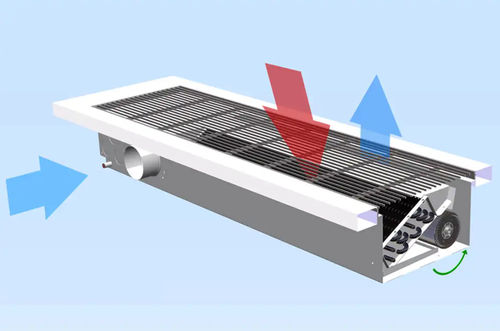

Fan coil unit VKB-S

Efficient performance for concealed terminal applications

• Quiet and energy-efficient operation with an EC high-performance fan
• Reduced installation and investment costs with extended 2000 mm size — fewer units, accessories and installation work
• Very narrow grille design (200 mm) for confined spaces or specific aesthetic requirements
• On-site flexibility: easy conversion between conveyor and terminal versions; pre-punched fresh air and water connections allow alignment to site conditions
• Integrated high-induction linear diffusers or displacement flow diffusers for comfortable fresh-air supply
• Accessible design and simple plug connections for straightforward maintenance
• Low-height version available down to 130 mm for shallow floor cavities

LTG Connected Intelligence
Demand-based decentralized ventilation control available even without a full building management system. Scalable, bus-compatible control intelligence for efficient local regulation.

Technical data

• Functions: Heating; Cooling; Fresh air supply (optional)
• Max. cooling output: up to 1100 W (example test condition: 6 °C cold water supply / 27 °C intake)
• Max. heating output: up to 4000 W (example test condition: 70 °C hot water flow / 20 °C intake)
• Electrical power: 8 W
• Alternative cooling output listed: up to 950 W

Dimensions (Length x Width x Height in mm)
800-1600 x 200 x 193

Characteristics

• Grille width: 200 mm
• Narrow design
• Low-height version available (down to 130 mm)
• Integrated options for high-induction linear diffusers or displacement flow diffusers
• Pre-punched fresh air and water connections for on-site alignment
• Easy maintenance and plug connections

Variations (excerpt)
Type / Max. cooling output / Max. heating output / Electrical power / Cooling output up to
Fan coil unit VKB-S (this product) / up to 1100 W / up to 4000 W / 8 W / up to 950 W
Fan coil unit VKB-O / up to 4500 W / up to 5000 W / 8 W / 3700 W
Fan coil unit VKB-N / up to 2100 W / up to 3300 W / 8 W / up to 1500 W

Specifications

• Brand: LTG
• Model / Series: VKB-S
• Functions: Heating, Cooling, optional Fresh air supply
• Sound level reference: LpA = 35 dB(A) (contextual conditions apply)
• Max. cooling output (listed): up to 1100 W (with specific test conditions)
• Alternative cooling output: up to 950 W
• Max. heating output: up to 4000 W
• Electrical power consumption: 8 W
• Standard dimensions: 800-1600 x 200 x 193 mm
• Grille width: 200 mm
• Low version available: height down to 130 mm
• Design features: narrow grille, options for integrated high-induction linear diffusers or displacement flow diffusers, pre-punched connections for installation flexibility
