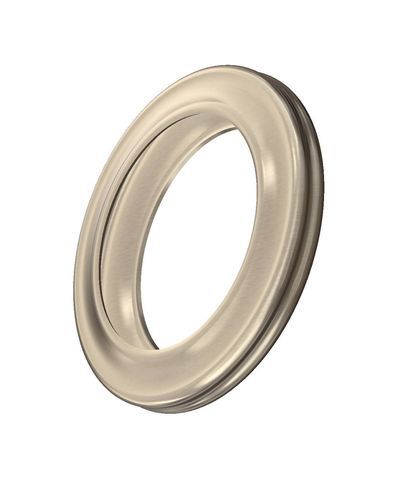

Spring-loaded seal Turbo

with circular cross sectionmetalfor aircraft

Overview
Metal turbo seals have been engineered for applications requiring light loading, flexibility and high temperature capability. They can be spring-energized to enhance sealing performance. While primarily used as face seals, they can also be manufactured in axial configurations for specific uses such as gas turbines in power generation.

Applications

• Face and axial turbine shaft seals for flexible, light-load applications
• Energy and power-generation equipment (gas turbines) and other rotating machinery with limited motion, thermal expansion or misalignment

Design & Function

• Primarily designed as face seals; axial configurations available
• Option for spring-energized designs to improve sealing performance
• Engineered to accommodate limited motions due to thermal expansion, misalignment or increased springback
• Dual sealing capability (face & axial) to adapt to varied system geometries and limited motions

Standard Specifications
Materials: Inconel X-750, Inconel 718, Waspaloy, Haynes 282
Typical use: applications with sufficiently wide cavities and low compression load; similar to E-Seals
Temperature: Cryogenic to +1010°C (+1859°F)
Pressure: 3 to 30 BAR (43 to 435 PSI)
Leakage rate: approx. 7 (L/min) per mm of diameter
Dimensions: face/radial diameters 38 mm to 7100 mm
Cross-section: 1.09 to 7.50 mm

Notes
This component is PFAS-Free* by formulation (*PFAS-Free means no intentional addition of PFAS; trace contamination cannot be completely excluded).

Technical characteristics / Specifications

• Materials: Inconel X-750, Inconel 718, Waspaloy, Haynes 282
• Operating temperature range: Cryogenic up to +1010°C (+1859°F)
• Rated pressure range: 3 to 30 BAR (43 to 435 PSI)
• Leakage performance: approx. 7 (L/min) per mm of diameter
• Available face/radial diameters: 38 mm to 7100 mm
• Available cross-sections: 1.09 mm to 7.50 mm
• Configurations: face seal and axial designs; spring-energized option available
• Intended use: light-load, flexible sealing applications with limited motion, thermal expansion or misalignment
• PFAS status: Considered PFAS-Free* (no intentional PFAS additions)
