Overview

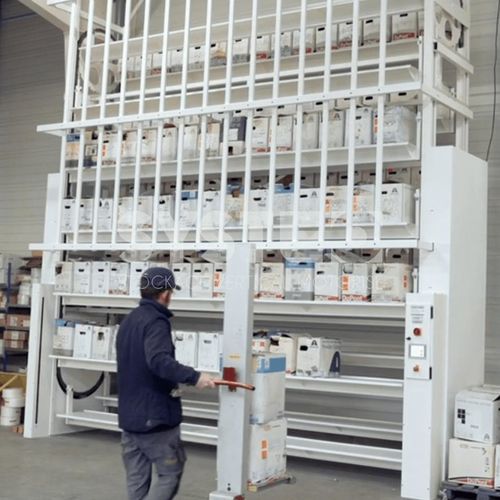

Automatic vertical carousel storage system designed for boxes, trays, buckets, containers and tubs. Provides ergonomic order picking at adjustable work height and is compatible with load-handling trucks. Suited to optimise vertical building space and improve access to stored items.

Applications

• Storage and order picking of boxes and trays
• Storage of buckets and tubs
• Container handling in warehousing and production areas
• Parts storage for assembly lines
• Environments requiring compact vertical storage

Storage method
The stored items are placed on flat-base racks sized for the specific box or container. Overall capacity depends on available height and length. Option to include a drip tray for potentially polluting liquids (in compliance with local regulations). Ergonomic pick position reduces repetitive strain injuries. Compatible with loading/unloading by standard load-handling trucks.

Options and accessories depending on configuration

• Storage level numbering
• Cell rails and guide systems
• Full housing or partially enclosed units
• Removable anti-theft rails
• Fully enclosed rear paneling
• Custom options depending on product dimensions and application

Loading/unloading
Depending on product size and configuration, loading and unloading can be performed manually or with suitable handling equipment (lift trucks, pallet jacks or automated handling devices).

Operation and control

• Control modes: press-and-hold (maintained action) or automated (PLC)
• Forward and reverse movement controls
• Location code entry for direct access to a specific level
• Touchscreen control available
• Integration options with ERP and WMS for inventory management

Highlights

• Simple operation: default press-and-hold control; bidirectional rotation of the carousel
• Ergonomic: adjustable working height for safe loading and unloading
• Rapid access: direct code entry or press-and-hold to reach required item
• Space optimisation: utilises building height to increase storage density
• Inventory control: facilitates stocktaking and can be integrated with ERP/WMS
• Suitable for heavy and bulky items with specific configurations for each application

Technical specifications

• Maximum weight per level: not provided / depends on configuration
• Height: 3 to 6.5 metres
• Maximum usable length: 4.5 m
• Linear speed: 5.00 m/min
• Control: press-and-hold or automated (PLC)
• Power supply: 380 V – 0.55 kW to 1.1 kW
• Standard version; final specifications depend on selected configuration
• Floor sizes available; consult supplier for product size and weight limits (boxes, trays, tubs, etc.)
• Option: drip tray for polluting liquid products (as per applicable regulations)
