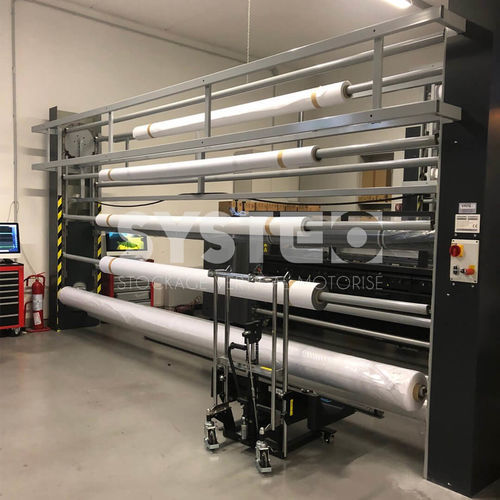

Vertical automated carousel for rolls and bobbins: rotating storage system designed for automatic storage and handling of rolls and bobbins, suitable for flexible floor coverings, technical materials and packaging/wrapping rolls.

Applications

• Flexible floor coverings
• Technical materials (fibreglass, tarpaulins, coated sheet, etc.)
• Packaging and wrapping rolls
• Other roll / bobbin applications

Storage method
Rolls or bobbins are stored on the correct axle matching the inner diameter. Use a load calculation to determine the right axle diameter to prevent flexion. Material may be pulled from the roll mounted on the carousel by a fabric cutting or inspection machine or placed on a table for end-cutting and quilting. The axle position is adjustable on the drive chain for stock optimisation. Available in single-loop and multi-loop configurations depending on cumulative load.

Options and accessories (depending on configuration)

• Centring cones
• Flange guide
• Roller axle
• Securing straps
• Label holder
• Regulator for start/end of cycle (depending on overall load)
• Cell rail
• Dual forwards/backwards control
• Manual or automatic cutting table
• Measuring system
• Unrolling cradle
• Pay-out reel on wheels (e.g. crank cylinder)

Loading / unloading
Ergonomic loading on the lower section using a dedicated load handling truck; several truck types available, including battery-powered handling trucks.

Technical features

• 13 heights available
• 5 ranges available depending on maximum diameter
• 3 types of drive chain
• Maximum weight capacity: 1000 kg
• Maximum roll diameter: 980 mm
• Total length: 2 to 6.5 metres
• Linear speed: 4 to 6.10 m/min (maximum)
• Control: press-and-hold or automated
• Power supply: 220 V or 380 V; motor power 0.55 kW to 1.5 kW

Specifications sheet (parameters to provide)

• Outer diameter of roll
• Inner diameter of roll
• Maximum width
• Maximum weight
• Quantity for storage
• Single- or double-sided use
• Heights available
• Supply of a manual or automatic cutting table
• Press-and-hold or automated control
• Other possible restrictions (ATEX zone, power supply system, etc.)

Benefits / Key points

• Easy to use: default control by pressing and holding; carousel rotates both directions
• Safe to operate: ergonomic loading/unloading heights to reduce risk to employees
• Quick access: press-and-hold or enter location code to reach the right item quickly
• Optimised space: makes use of building overhead space
• Stock management: faster stocktaking; can integrate with ERP and WMS
• Suitable for heavy and bulky products: specific products for every application

Caractéristiques / spécifications techniques

• Heights available: up to 13 heights
• Ranges: 5 ranges depending on maximum diameter
• Drive chain options: 3 types
• Maximum load per carousel: 1000 kg
• Maximum roll diameter: 980 mm
• Total carousel length options: 2 m to 6.5 m
• Linear speed range: 4 to 6.10 m/min (maximum)
• Control modes: maintained (press-and-hold) or automated (PLC)
• Power supply options: 220 V or 380 V; motor power between 0.55 kW and 1.5 kW
• Available accessories: centring cones, flange guide, roller axle, securing straps, label holder, cycle regulator, cell rail, dual control, cutting table, measuring system, unrolling cradle, pay-out reel, etc.
