Vertical storage system

automatedmulti-levelfor the aerospace industry

Overview

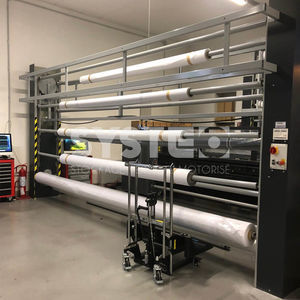

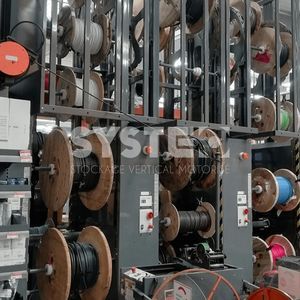

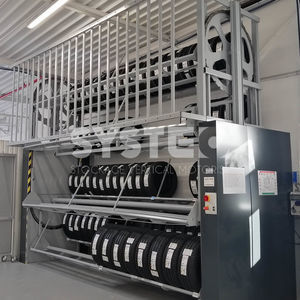

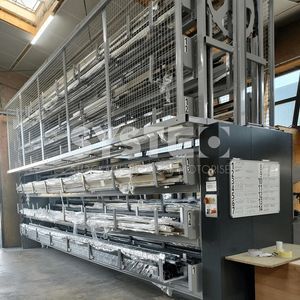

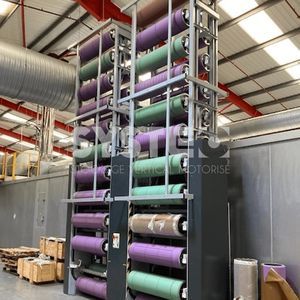

Automatic vertical carousel storage system engineered for spotlights and projectors. Suitable for theatre spotlights, profile spotlights, asymmetric floodlights, floodlights, PARs and similar luminaires. Each unit uses a suspended hanging rail tailored to total length and cumulative weight; fixtures are secured manually when loaded. Storage capacity is defined by the carousel's total height and length.

Applications

• Theatre spotlights
• Profile spotlights
• Asymmetric floodlights
• Floodlights
• ACP 1001/ADB
• C101-C201/ADB
• PC1000/2000
• Robert Juliat fresnels 611/613/614/713/714
• PARS and similar luminaires

Storage method

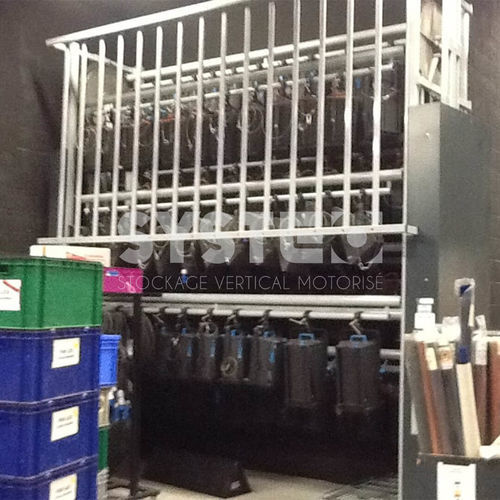

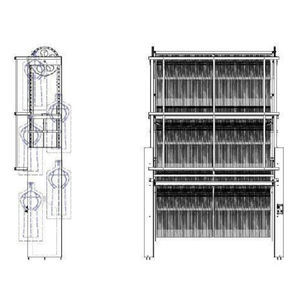

Each spotlight is suspended from a hanging rail similar to a theatre scaffold bar. Rails and suspension points are configured per project to match cumulative weight and product lengths. Storage density depends on the carousel height and total rail length.

Options and accessories (depending on configuration)

• Cell rail
• Full housing
• Removable anti-theft rail
• Fully enclosed rear
• Other accessories depending on project configuration

Loading / Unloading
Loading and unloading is performed manually by positioning the required rail at an ergonomic working height using manual or automated controls. System is compatible with multi-level installations (for example mezzanine integration).

Control and operation modes
Standard control: press-and-hold button to rotate the carousel to the required position; rotation possible in both directions. Optional automated modes: PLC-driven automation, touchscreen with location-code entry, or remote control integrations.

Key product benefits

• Simple operation: press-and-hold control or enter location code for direct access
• Ergonomic handling: adjustable access height for safe loading/unloading
• Fast retrieval: quick access to individual luminaires
• Space optimisation: uses overhead building volume efficiently
• Inventory integration: accelerates stocktaking and can interface with ERP/WMS
• Adaptable for heavy/bulky fixtures: configurable suspension and supports per application

Specifications sheet (summary)
Floor footprint, required number of spotlights or linear metres of storage, distribution by spotlight type, and installation constraints are evaluated per project to define the final configuration.

Technical specifications

• Heights available: 6 selectable heights
• Maximum spotlight height: 850 mm
• Maximum weight per level: specified per configuration depending on usable width
• Total length: 3 to 5 metres
• Total height: 4 to 8 metres
• Linear speed: approx. 5 m/min
• Control: press-and-hold (standard) or automated (option)
• Power supply: 220 V – 0.55 kW
• Storage capacity: depends on total height and length of the carousel and project configuration
