Vertical storage system

automatedbaggagefor the aerospace industry

Overview

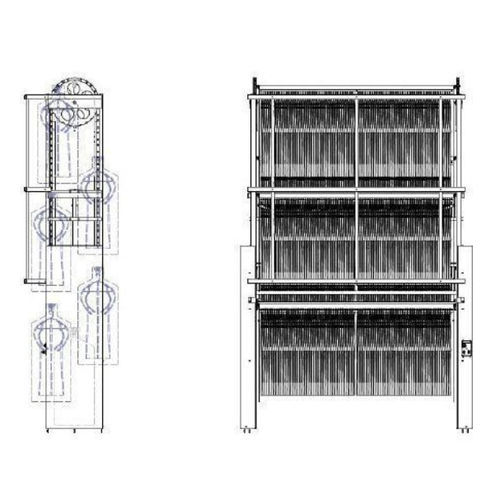

Automated vertical carousel for clothing. SYSTEO Industrie automated vertical carousels are designed for storage and handling of garments on hangers, utilising overhead building space for compact, high-density storage and efficient automated retrieval and stock management.

Applications

• All types of garments on hangers in industrial, retail or logistics environments.

Storage method
Each garment is suspended on its hanger from a dedicated hanging rail sized to the total length and cumulative weight. Storage capacity depends on carousel height and usable length.

Options and accessories (depending on configuration)

• Stock level numbering
• Cell rail
• Full housing
• Configuration-specific accessories

Loading / Unloading
Manual loading and unloading at an ergonomic hanging/removal height to reduce operator strain.

Operation and features

• Simple control: press-and-hold to rotate to the required item; bi-directional rotation.
• Ergonomic operation: loading/unloading at safe working height.
• Fast access: enter location code or press-and-hold for rapid retrieval.
• Space optimisation: uses overhead building volume.
• Stock management: accelerates stocktaking; integrable with ERP and WMS.
• Adaptable for heavy or bulky items with specific configurations.
• Control modes: maintained action or PLC-based automation; touchscreen control available.

Specifications sheet (summary)

• Available floor sizes
• Size of clothing on hanger
• Weight per linear metre
• Quantitative target

Technical specifications

• Maximum weight per level: 250–300 kg depending on usable width
• Maximum clothing height: 1350 mm
• Height: 3.5 to 6 metres
• Maximum usable length: 4 m
• Linear speed: approx. 5.00 m/min
• Control: press-and-hold or automated
• Power supply: 380 V – 0.5 kW to 1.1 kW
