Vertical storage system

automatedfor airportfor aeronautics

Overview

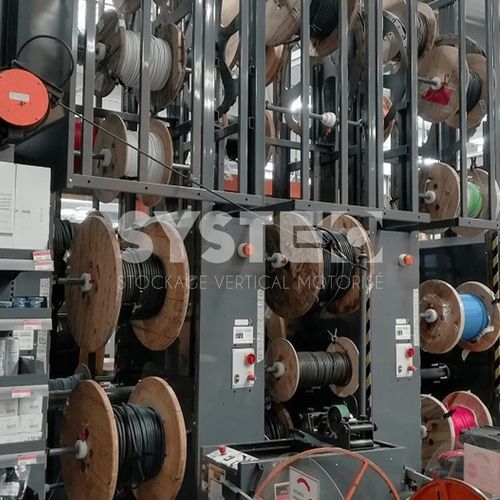

Vertical carousels provide an efficient storage solution for cable drums, enabling rapid, easy retrieval. Systeo Industrie offers several motorised ranges of cable drum racks designed for rubber, wire and cable drums.

Storage applications
Our systems accommodate multiple drum types: rubber, wire and cable drums, for storage-only or for unrolling/cutting directly from the carousel.

Storage method
Drums are placed in dedicated racks (free-rolling or fixed). They may be suspended on a full-width axle; for heavier drums the axle is mounted on the drive chain. Alternatively, drums can hang side by side from a supporting girder sized to the load. Cumulative weight defines the maximum usable length.

Options and accessories (depending on configuration)

• Numbering of locations
• Dual forward/backward control
• Cell rail
• Full housing
• Full rear closure
• Front measuring system
• Appropriate loading truck
• Other configuration-dependent accessories

Loading / Unloading
Multiple handling solutions are available: manual or battery-powered loaders, stackers, mobile trucks, etc., selected to match site constraints and drum characteristics.

Technical features
Three product ranges according to maximum drum diameter. Max. diameter: 950 mm. Height: 3 to 6 m. Total length: 2 to 6.5 m. Linear speed: up to 4–6 m/min. Control modes: press-and-hold or automated (PLC options). Power supply: 220 V or 380 V – 0.5 kW to 1.5 kW. Standard specifications may vary by configuration.

Key benefits / Features

• Simple operation: press-and-hold control; carousel rotates in both directions.
• Ergonomic loading/unloading height to reduce operator strain.
• Fast access: direct position selection or press-and-hold movement.
• Space optimisation: uses overhead building space effectively.
• Stock management: accelerates stocktaking and integrates with ERP/WMS.
• Adapted to heavy and bulky products: configurable for specific drum types.

Specifications sheet (summary)
Quantitative objectives; available floor/footprint sizes; drum dimensions (width, inner and outer diameter, weight); distribution of drums by size; storage-only or unrolling/cutting configurations.

Caractéristiques / spécifications techniques

• Ranges: 3 ranges available depending on maximum diameter
• Max. diameter: 950 mm
• Height: 3 to 6 metres
• Total length: 2 to 6.5 metres
• Linear speed: 4 to 6 m/min (maximum)
• Control: press-and-hold (maintained action) or automated (PLC options)
• Power supply: 220 V or 380 V – 0.5 kW to 1.5 kW
• Storage parameters: floor sizes, drum widths, inner/outer diameters, weights, distribution by size
• Functions: storage-only or unrolling/cutting from the carousel
• Standard version subject to change according to configuration
