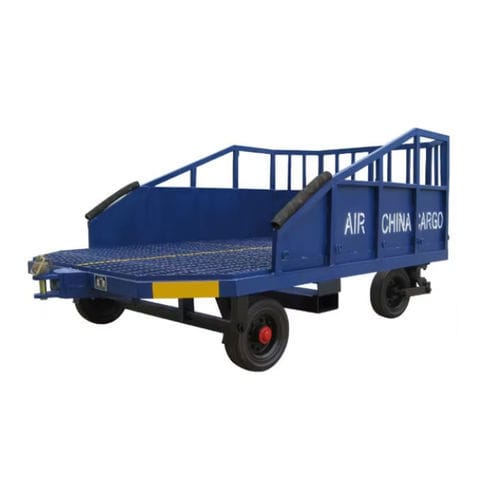

Ground support baggage trailer LC030A

4-wheelopen

Introduction
An airport baggage trailer is ground support equipment designed to move checked baggage, cargo containers and ULDs between the terminal, baggage handling facilities and aircraft, supporting safe and efficient ramp operations.

Product description
Main function: suitable for large quantities of luggage, parcels and other bulk cargo. Towable trailer with reinforced platform and safety fittings adapted for airport ground handling.

Specification of luggage trailer

• Max Capacity: 3000 KG
• Wheel base (mm): 1970
• Overall Dim (mm): 4229(L) × 1900(W) × 1460(H)
• Working Table Size (mm): 563
• Platform Height (mm): 3000(L) × 1900(W) × 560(H)
• Min Turn Radius (mm): ≤3000

Advantages

• Equipped with fixed safety guards at front and both sides
• Front wheel fitted with turn plate to facilitate steering
• Uses ultra-wear-resistant full-core tyres compliant with GB10823
• Equipped with latching hook at the tail
• Dimensions and other requirements can be customized on request

Technical specifications

• Model: LC030A
• Max Capacity: 3000 KG
• Wheel base: 1970 mm
• Overall Dim: 4229(L) × 1900(W) × 1460(H) mm
• Working Table Size: 563 mm
• Platform Height: 3000(L) × 1900(W) × 560(H) mm
• Min Turn Radius: ≤3000 mm
