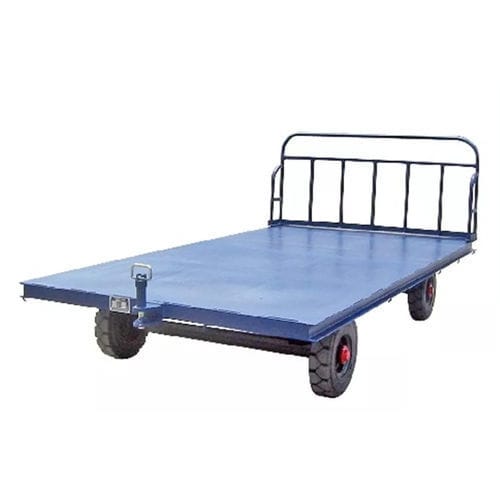

Ground support baggage trailer SC020A

4-wheelopenstainless steel

Introduction
Airport baggage trailers are used in ground handling to transport passenger baggage and bulk cargo between terminals and aircraft. Designed for apron use, they support efficient aircraft turnaround and protect loads during transfer.

Key features

• Wheels and mobility for smooth movement on airport aprons and tarmac.
• Towing mechanism compatible with ground support vehicles (e.g. tugs) for efficient transport.

Product Description
Main function: suitable for large quantities of baggage, packages and other bulk cargo; configurable surface options and customizable dimensions to match operational requirements.

Specification of Luggage Trailer

• Max Payload: 2000KG
• Tare (kg): 623
• Overall Dimensions (mm): 4217 (L) × 1750 (W) × 1368 (H)
• Working Height (mm): 568
• Platform (L×W×H mm): 3240 × 1750 × 560
• Min Turn Radius (mm): ≤3000

Advantages

• Equipped with front safety guards to protect loads.
• Ultra wear-resistant full-core tyres compliant with GB10823 standard.
• Tail latching hook for secure retention of cargo.
• Front axles fitted with self-retention rotor plates for stability.
• Lightweight, safe towing bar design that aligns with the trailer hook during use.
• Surface options: stainless steel or skid-proof steel plate; trailer size can be customized to user needs.

Other product details
Model: SC020A

Technical specifications

• Model: SC020A
• Max Payload: 2000KG
• Tare: 623 kg
• Overall Dimensions (mm): 4217 (L) × 1750 (W) × 1368 (H)
• Working Height (mm): 568
• Platform Dimensions (mm): 3240 (L) × 1750 (W) × 560 (H)
• Min Turn Radius (mm): ≤3000
• Tyres: ultra wear-resistant full-core tyre (per GB10823)
• Surface options: stainless steel or skid-proof steel plate; size customizable
