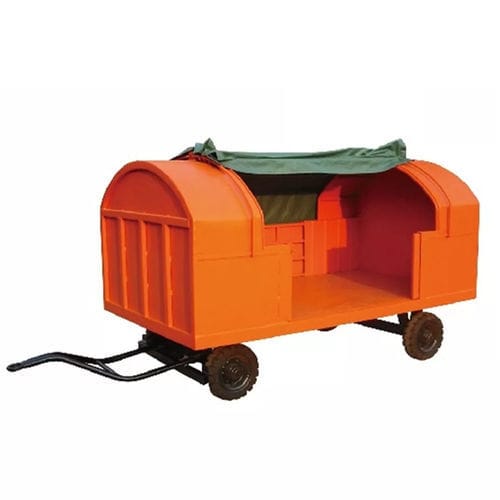

Ground support baggage trailer CM-AGE-AT

4-wheelwith tarpaulinopen

Introduction
Airport bulk cargo trailers are designed for the efficient handling and transport of non-containerized baggage and loose or oversized cargo between apron areas, cargo handling facilities and aircraft. The LC030A configuration supports organized loading, unloading and safe movement of bulk items within airport ground operations.

Key features

• Regular maintenance access points to facilitate inspection and servicing.
• Designed for a maximum payload of 1500 kg with structural reinforcement for bulk loads.
• Cargo restraint options: fixed steel canopy with waterproof curtain or movable plastic cover; sliding doors on both sides.

Product Description

• Suitable for baggage, wrapped goods and loose bulk cargo.
• Movable plastic cover and sliding doors on both sides for protected access.
• Self-locking rear hitch to prevent accidental disconnection.
• Brake system operative with towbar in raised or lowered position.

Specification of Luggage Trailer

• Max Capacity: 1500 kg
• Dead Weight: 680 kg
• Working Table Size: 3000 mm (L) × 1500 mm (W)
• Overall Dimension: 4027 mm (L) × 1750 mm (W) × 1180 mm (H)

Advantages

• Adapted to carry baggage, wrapped cargo and bulk items; options for fixed steel canopy with waterproof curtain or movable cover for adverse weather.
• Towbar supports multi-cart connection and integrated braking.
• Turnable front axle for improved maneuverability on ramp areas.
• Extra wear-resistant solid tires for extended service life.
• Rear self-locking hook to reduce risk of unintended uncoupling.
• Available in different materials and external dimensions to meet customer requirements.
• Two-side loading mode for flexible handling operations.

Why choose us

• Manufacturer with global export experience and one-stop service.
• Professional production and strict quality control.
• Advanced manufacturing equipment and R&D team.
• Competitive pricing and sourcing solutions.
• Responsive technical and after-sales support.

Technical specifications

• Model: CM-AGE-AT
• Brand: CHEERSMETAL
• Max capacity: 1500 kg
• Dead weight: 680 kg
• Working table size: 3000 mm (L) × 1500 mm (W)
• Overall dimensions: 4027 mm (L) × 1750 mm (W) × 1180 mm (H)
• Movable plastic cover and sliding doors on both sides
• Self-locking rear hitch
• Brake functions when towbar is up or down
• Turnable front axle for improved maneuverability
• Extra wear-resisting solid tires
• Two-side loading mode
