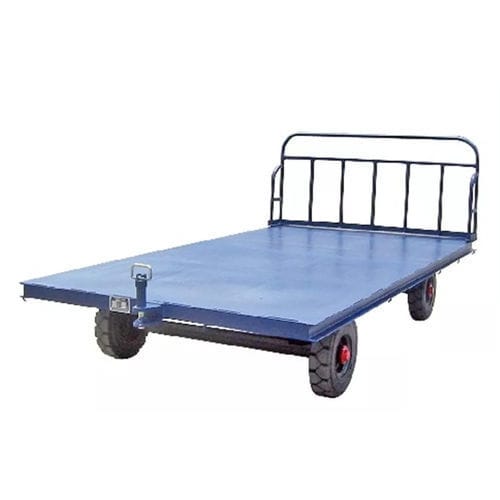

Ground support baggage trailer SC015B 4-wheelopen
Add to favorites
Compare this product
Characteristics
- Applications
- for ground support
- Other characteristics
- 4-wheel, open
- Carrying capacity
1,500 kg
(3,307 lb)- Length
4,027 mm
(158.5 in)- Width
1,750 mm
(68.9 in)- Height
1,180 mm
(46.5 in)
Description
Introduction
An aircraft baggage trailer is a piece of ground support equipment (GSE) designed to transport checked baggage and bulk cargo between terminals, baggage handling points and aircraft. It is built for airport operations where secure, weather-protected transfer and easy manoeuvrability are required.
Product description
Advantages
SPECIFICATION OF LUGGAGE TRAILER
Model: CM-AGE-AT
Brand: CHEERSMETAL
Max capacity: 1500 kg
Dead weight: 680 kg
Working table size (mm): 3000 (L) × 1500 (W)
Overall dimension (mm): 4027 (L) × 1750 (W) × 1180 (H)
Why choose us
Technical characteristics
An aircraft baggage trailer is a piece of ground support equipment (GSE) designed to transport checked baggage and bulk cargo between terminals, baggage handling points and aircraft. It is built for airport operations where secure, weather-protected transfer and easy manoeuvrability are required.
Product description
- Suitable for luggage and bulk cargo transport
- Movable plastic cover and sliding doors on both sides for protected loading/unloading
- Self-locking rear hitch to prevent unintended disconnection
- Brake activates whether the towbar is in the raised or lowered position
Advantages
- Enclosed steel canopy with waterproof cloth and sliding doors for operation in adverse weather
- Towbar with dual functions: multi-trailer connection and integrated braking
- Turnable front axle for enhanced manoeuvrability in confined ramp areas
- Wear-resistant solid tires for extended service life and low maintenance
- Self-locking rear hook for secure coupling during movement
- Available in different materials and external dimensions to meet airport specifications
- Loading mode: two-side loading for fast handling
SPECIFICATION OF LUGGAGE TRAILER
Model: CM-AGE-AT
Brand: CHEERSMETAL
Max capacity: 1500 kg
Dead weight: 680 kg
Working table size (mm): 3000 (L) × 1500 (W)
Overall dimension (mm): 4027 (L) × 1750 (W) × 1180 (H)
Why choose us
- Manufacturer with advanced production equipment and strict quality control
- R&D and technical support for customization to airport requirements
- Experienced export and one-stop logistics solution
- Competitive pricing and post-sale service for fleet operators
Technical characteristics
- Model: CM-AGE-AT
- Brand: CHEERSMETAL
- Max capacity: 1500 kg
- Dead weight: 680 kg
- Working table size: 3000 (L) × 1500 (W) mm
- Overall dimension: 4027 (L) × 1750 (W) × 1180 (H) mm
- Movable plastic cover and sliding doors on both sides
- Self-locking rear hitch
- Brake functions when towbar is raised or lowered
- Two-side loading mode
- Turnable front axle for manoeuvrability
- Wear-resistant solid tires
