Ground support baggage cart BC-2817-C5

for airport terminalsaluminumopen

Product overview
The CHEERSMETAL BC-2817-C5 airport drawbar baggage trailer is a towable apron vehicle designed for efficient transfer of loose luggage, cargo and aircraft supplies between aircraft and terminal areas. Built with a painted steel structure (optional aluminum-alloy frame) and a non-slip platform, it is engineered for frequent apron use and quick tractor hookup.

Key features

• Towable drawbar design with swivel coupling for rapid connection to apron tractors
• Working platform 2800 × 1700 mm with anti-slip floor
• Removable side railings to secure loads or enable oversized cargo handling
• Optional waterproof canvas cover with five support bows
• Heavy-duty solid rubber wheels for wear resistance and puncture protection
• Integrated braking system and dual-function linked brake drawbar for safe parking and towing

Technical specifications

• Model: BC-2817-C5
• Brand: CHEERSMETAL
• Overall dimensions: 4252 × 1700 × 1764 mm
• Working platform: 2800 × 1700 mm
• Platform height (from ground): 520 mm
• Front railing height: 1212 mm
• Rear railing height: 1212 mm
• Curb weight: ≥520 kg
• Minimum load capacity: ≥2000 kg (custom 1000–3000 kg available)
• Wheelbase: approx. 1800 mm
• Maximum speed: ≤25 km/h
• Minimum turning radius: ≤3500 mm
• Included options: rainproof fabric with five support pipes; dual-function linked brake towbar

Applications

• Transfer of bulk baggage between aircraft and terminal
• Transport of apron supplies, provisioning and ground support materials
• Use in terminals, hangars and cargo handling zones

Options & customization

• Custom dimensions and load ratings to match airport operational needs
• Choice of painted steel frame or lightweight aluminum-alloy frame
• Optional waterproof cover, support structure and wheel/coupling configurations

FAQ

• Q1: What is this trailer used for? A: It is a towable ground support trailer for moving loose luggage, cargo and supplies on aprons and between aircraft and terminals.
• Q2: What materials are available? A: Standard painted steel structure; optional aluminum-alloy frame with non-slip plate floor for improved corrosion resistance.
• Q3: What is the load capacity? A: Standard minimum payload for BC-2817-C5 is ≥2000 kg; models from 1000 to 3000 kg can be supplied on request.
• Q4: Are the side railings removable? A: Yes. Side railings can be quickly assembled or removed to handle oversized items or secure loose baggage.
• Q5: What type of wheels and coupling are fitted? A: Heavy-duty solid rubber wheels and a standard tow coupling compatible with apron tractors; swivel steering design for maneuverability.

Why choose CHEERSMETAL

• Manufacturer with advanced production equipment
• Strict quality control and factory testing
• Dedicated R&D team for product adaptation
• Experience in international export and logistics
• One-stop service for customization and spare parts

Product images

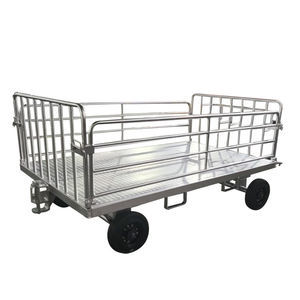

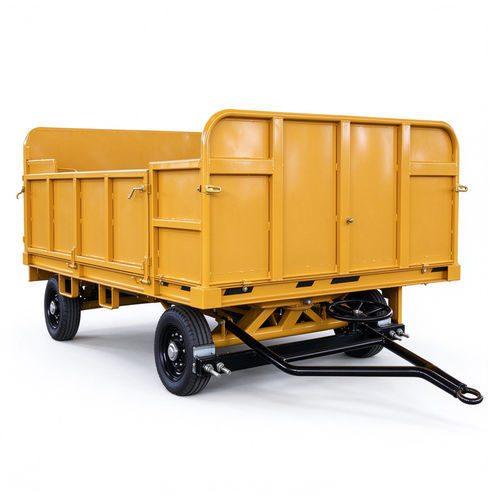

Multiple photos and configuration images are available on the product page to show structure, railings, towbar and optional covers.
