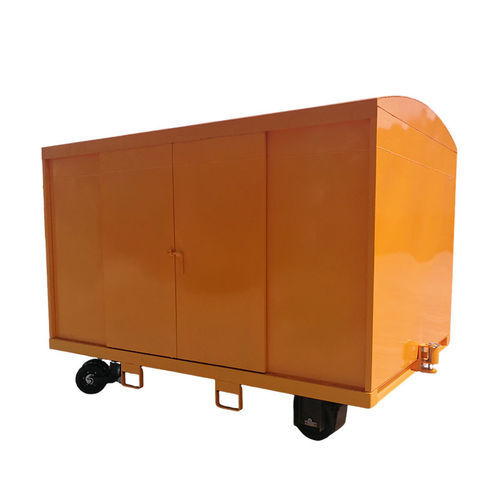

Runway baggage trailer BC-2720V

4-wheelclosed

Product overview
The BC-2720V airport cargo pallet dolly by CHEERSMETAL is engineered for safe, efficient movement of aviation pallets, ULDs, air freight and baggage across aprons, cargo terminals and warehouses. Designed for side loading with durable galvanized-steel construction and precise laser welding for a flat, deformation-free body.

Construction & features

• Chassis: Outer frame from 80×40×5 mm rectangular tubing; work platform in 4 mm steel plate with a slight central depression to prevent water pooling.
• Body: 1.5 mm bent galvanized steel plate; laser-welded structure for consistent flatness and structural integrity.
• Rear hitch: Spring-loaded, self-locking towing hitch to prevent accidental detachment.
• Tow bar & brakes: Turntable-style steering for simple operation; braking acts on front wheels and engages whether the tow bar is raised or lowered. Tow bar lower position height: 130 cm. Brake pads adjustable.

Main technical parameters

• Working dimensions: 2775×2000×520 mm
• Overall dimensions: 4300×2000×2100 mm
• Loading/unloading method: Side loading
• Rated vehicle speed: 25 km/h
• Load capacity: 2500 kg

Product images
Photographs illustrate the pallet dolly, structural details and key components to support inspection and technical evaluation.

FAQ

• Q1: What is an Airport Cargo Pallet Dolly used for? — A1: Professional airport GSE for transporting aviation pallets, ULDs, air freight and baggage on aprons, cargo terminals and warehouses to improve cargo handling efficiency.
• Q2: What types of cargo and ULDs can this pallet dolly support? — A2: Compatible with standard civil aviation pallets and mainstream ULDs; suitable for regular air freight, bulk cargo and airline baggage operations.
• Q3: Is this Airport Cargo Pallet Dolly suitable for global airport operation standards? — A3: Yes. It complies with international civil aviation GSE specifications and adapts to mainstream regional standards used worldwide.

Why choose us

• Manufacturer with professional production and export experience
• Competitive pricing for B2B procurement
• Advanced production machinery and processes
• Strict quality control system
• Dedicated R&D team (10 people)
• Professional sales and after-sales support
• Worldwide export experience
• One-stop solution services

Specifications

• Model: BC-2720V
• Brand: CHEERSMETAL
• Chassis: 80×40×5 mm rectangular tubing; platform: 4 mm steel plate with slight central depression
• Body material: 1.5 mm bent galvanized steel plate; laser-welded structure
• Rear hitch: Spring-loaded self-locking towing hitch
• Tow bar: Turntable-style steering; front-wheel braking that engages raised or lowered; tow bar lower position height: 130 cm; adjustable brake pads
• Working dimensions: 2775×2000×520 mm
• Overall dimensions: 4300×2000×2100 mm
• Loading/unloading method: Side loading
• Rated vehicle speed: 25 km/h
• Load capacity: 2500 kg
