PIN diode 520LD-1-0-0

with housinglow-noise

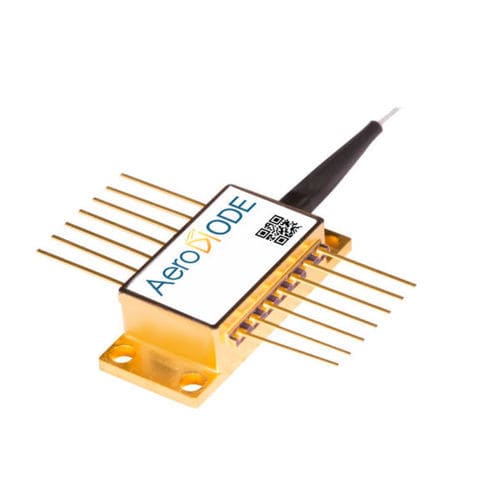

These fiber coupled 520 nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. Our new 14-pin “DIL” package (with TEC) with its butterfly adaptation kit can be mounted on any Butterfly laser diode driver board. They are also compatible with our low noise CW or high speed nanosecond pulsed drivers. The 520nm laser diode can reach high power in nanosecond pulse regime up to 75 mW. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 520 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. laser diode Key Features (scroll down to see all configurations and prices) : New form-factor : 14 pin – DIL with self cooling (Hedgehog package) compatible with all Butterfly laser diode drivers. The adaptation kit for butterfly drivers is supplied with each unit. Two singlemode models : Standard (Fabry-Perot) 20 mW and 50 mW Up to 50 mW CW and 75 mW peak power out of fiber SMF or PM version (scroll down to see all configurations and prices). Down to 1 nm emission bandwidth Down to 2-3 ns pulse width Low noise CW emission
