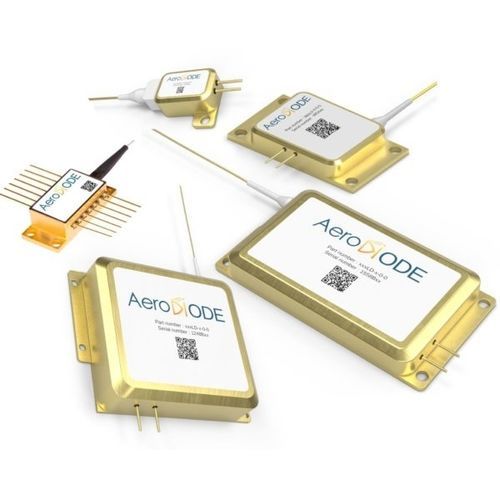

Signal diode 790LD series

tunablepulsehigh-power

These fiber-coupled 790nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions. he single mode 790 nm laser diodes can reach high power in nanosecond pulse regime up to 400 mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 790 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 6 multimode versions are offered for CW emission up to 180 W in a 105 µm core multimode fiber (best brightness on the market at this wavelength). 790 nm laser diode Key Features (Scroll down to see all versions and prices) : Seven models : 1 singlemode and 6 multimode high power at 793 nm up to 180 W Best brightness on the market with 180 W in a 105µ-NA=0.22 fiber Wavelength (T° tunable or Bragg locked) : ~ 792 nm ideal for Tm3+ pumping All versions are fiber-coupled (with either SMF, optional PMF or multimode fibers) Optional singlemode version with narrow spectrum (FBG-based technology) Up to 250 mW CW for singlemode models ; 140 W for multimode Up to 400 mW pulsed peak power out of fiber for singlemode Low noise CW emission Optional collimator Scroll down to see all versions and options and associated prices. Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
