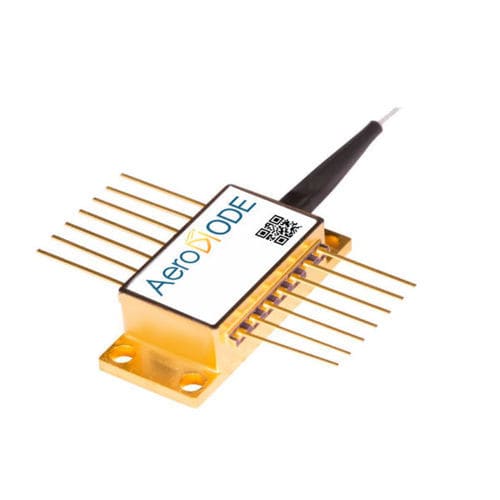

PIN diode 1525LD series

linesignalpulse

These fiber-coupled 1525 nm laser diodes are offered as stock items or associated with a low noise CW or pulsed laser diode driver. All 2 models are single frequency versions up to 30 mW. They are compatible with our high speed nanosecond pulsed drivers and this makes it an optimal solution for Telecommunication, 3D-sensing or Quantum R&D. The single mode 1525 nm laser diodes can reach high power in nanosecond pulse regime up to 30 mW. Most Turn-key diode + driver solutions are optimized from single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 1525 nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. It becomes easy to generate complex burst shapes. 1525nm laser diode Key Features (scroll down to see all configurations and prices): Offered as stock items or combined with a CW low noise or pulsed laser diode driver Wavelength : 1525 nm or select the wavelength you need between 1260 and 1650 nm (most models are in stock) Contact us to target some special lines linked with Rb line multiphoton non linear experiments 2 single-frequency models up to 30 mW (DFB technology with isolator) Typical linewidth of less than 200 kHz (CW mode with ultra low noise driver) All versions are fiber-coupled and include an isolator (special versions without isolator are available on demand) Up to 30 mW CW / 40 mW peak power (typical value) Down to 1 ns pulse width Low noise CW emission Butterfly Type-1 pin configuration or other pin configurations available on demand (Type-2, Type-2 bias T, Type 2 anode grounded) Scroll down to see all configurations, prices and lead times.
