Standard diode 660LD series

signalhigh-powerpulse

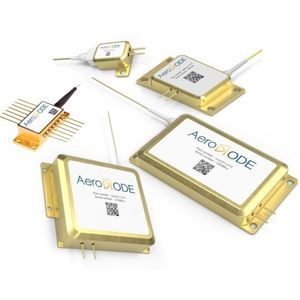

These fiber coupled 660nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions. The 660nm laser diode can reach high power up to 150mW for singlemode models or up to 10W for the multimode version . Most Turn-key singlemode diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 660nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. 660nm laser diode Key Features (scroll down to see all configurations and prices): Two singlemode models: Standard (Fabry-Pérot) 50mW and 100mW One multimode model up to 10W SMF or PMF version Down to 1nm emission bandwidth Down to 1-2ns pulse width Low noise CW emission The laser diode modules are offered as stock items or combined with a turnkey Pulse or CW driver Scroll down to see all versions and options and associates prices. Depending on your country, AeroDIODE will ship your order from Europe or from the USA. Product Datasheets: For laser diode alone, click on the models in the table below. The GUI software of the optional drivers lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa, Python (LINUX compatible) etc.)
