Signal diode 1064LD series

pulsehigh-power

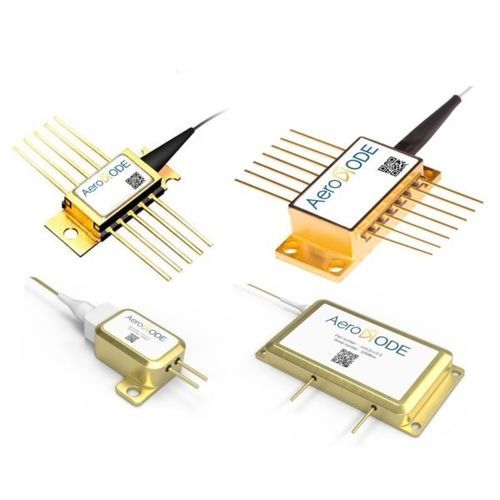

These fiber coupled 1064nm laser diodes are offered as stock items or associated with a CW or pulsed laser diode driver. They are compatible with our low noise CW or high speed nanosecond pulsed drivers. 3 DFB versions are available for pulsing or for narrow linewidth CW mode hop free continuous tuning. These 1064nm laser diode can reach high output power in nanosecond pulse regime up to 2W. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1064nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 3 high power multimode versions are also offered for CW or pulse emission at this wavelength up to 100W. 1064nm laser diode Key Features (scroll down to see all versions and prices): 8 models at this wavelength: 2 singlemode Fabry-Perot, 3 singlemode DFBs and 3 multimode Up to 700mW CW output power for singlemode models ; 100W output power for multimode models Up to 1500mW peak power out of fiber for single mode models Down to 100kHz narrow spectral width (DFB single mode version optimized for CW) All the single mode laser diode models have PM fiber (polarization maintaining fiber), include a photodiode within the butterfly package and have a broad operating temperature range Down to 1 ns pulse width A high power solution with short nanosecond pulses (up to 350W peak power) is now available – see the dedicated web page : High power pulsed laser diode Scroll down to see all configurations, prices, part numbers and lead times These 1064nm laser diodes are offered in 8 versions
