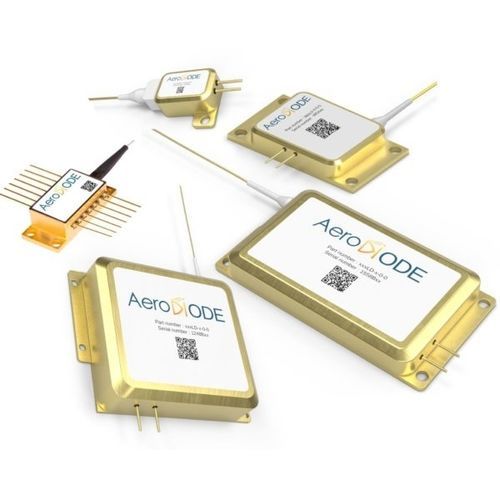

Signal diode 450LD series

pulsehigh-power

These fiber-coupled 450nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our high speed nanosecond pulsed drivers or high power CW drivers with air cooling for the multimode high power laser diode versions. The single mode 450nm laser diodes can reach high power in nanosecond pulse regime up to 60mW. Most Turn-key diode + driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. The 450nm laser diode precision pulses are generated internally by an on-board pulse generator, or on demand from an external TTL signal. 3 multimode versions are offered for CW emission up to 30W in a 105µm core multimode fiber (best brightness on the market at this wavelength). 450nm laser diode Key Features (Scroll down to see all versions and prices) : The singlemode 450nm laser diode (Model 1) can be purchased mounted on this CW laser diode driver. Scroll down to see all versions and prices. Four models : 1 singlemode and 3 high power multimode at 450nm up to 30W Best brightness on the market with 30W in a 105µ-NA=0.22 fiber Wavelength : ~ 450nm All versions are fiber-coupled (with either SMF, optional PMF or multimode fibers) Up to 50mW CW for singlemode models ; 30W for multimode Up to 60mW pulsed peak power out of fiber for singlemode Low noise CW emission Optional collimator Scroll down to see all versions and options and associated prices. Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
