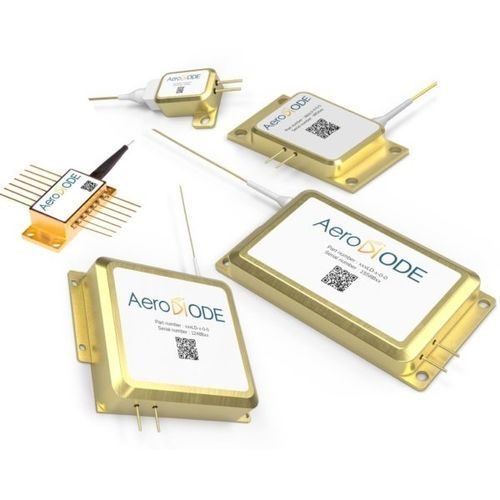

Tunable diode 785LD series

pulsehigh-power

These fiber-coupled 785nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our ultra-low noise or high speed nanosecond pulsed drivers and our high power CW drivers with air cooling for the high power multimode laser diode versions. The 785 nm laser diodes are offered in six different models with 3 with narrow emission linewidth. Most Turn-key diode + driver solutions are optimized for low noise CW emission or optimized pulsed performances with pulse width lengths down to 1 nanosecond. 1 multimode version has a specially narrow linewidth and 3 multimode versions are offered for CW emission up to 20 W in a 105 µm core multimode fiber. 785 nm laser diode Key Features (Scroll down to see all configurations and prices) : Wavelength (T° tunable or Bragg locked) : ~ 785 nm Six models : 2 singlemode, 1 multimode with VBG volume Bragg Grating) locking and 3 multimode with high power up to 20 W at 785 nm All versions are fiber-coupled (with either SMF, optional PMF or multimode Fibers) Optional singlemode version with narrow linewidth spectrum (FBG-based technology) Up to 250 mW CW for singlemode models ; 20 W for multimode Up to 400 mW pulsed peak power out of fiber for the singlemode models The 600 mW multimode with VBG locking is ideal for Raman Spectroscopy application Low noise CW emission Optional collimators Scroll down to see all versions and options and associated prices. A high power solution with short nanosecond pulses (up to 350 W peak power – <10 ns pulse width out of a 105 µm core fiber) is now available : follow the dedicated product page: High power pulsed laser diode
