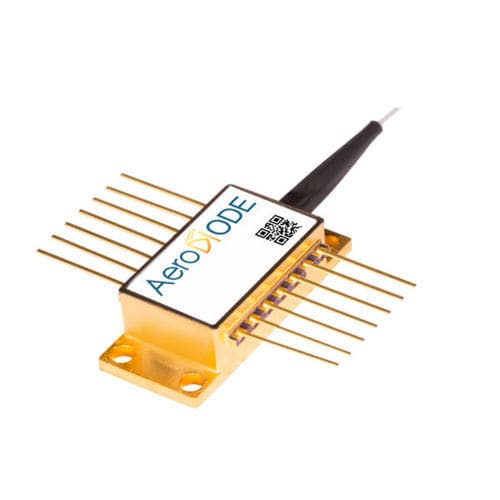

PIN diode 1085LD series

integratedsignalpulse

These fiber coupled 1085nm laser diodes are offered as stock items or associated with a CW or Pulsed Laser Diode Driver. They are compatible with our low noise CW or high speed nanosecond pulsed drivers. Turn-key laser modules with TEC controller are also offered in an open or integrated version. The 1085nm laser diode can reach high power in nanosecond pulse regime up to 600mW. Most Turn-key diode+driver solutions are optimized for single-shot to CW performances with pulse width lengths down to 1 nanosecond. 1085nm laser diode precision pulses are generated internally by an on-board pulse generator, or on-demand from an external TTL signal. See our tutorial on fiber coupled laser diodes for more information about the two technologies used here: Fabry Perrot and DFB. These 1085nm laser diodes are offered in 2 versions: A high power singlemode version (400mW) at 1085nm ideal for CW and pulsed applications. A single frequency fiber coupled DFB 1085nm laser diode with typically 200kHz bandwidth which reaches up to 70mW in CW and 105mW in pulse regime with a very stable emission spectrum from the first nanosecond. 1085nm laser diode Key Features (scroll down to see all configurations and prices): Two singlemode models: 1 Standard (Fabry-Perrot) and 1 single frequency (DFB) Up to 600mW peak power out of fiber (Fabry-Perrot version) Down to 200kHz emission bandwidth (DFB version) Down to 1ns pulse width Low noise CW emission Depending on your country, AeroDIODE will ship your order from Europe or from the USA.
